DBL16967

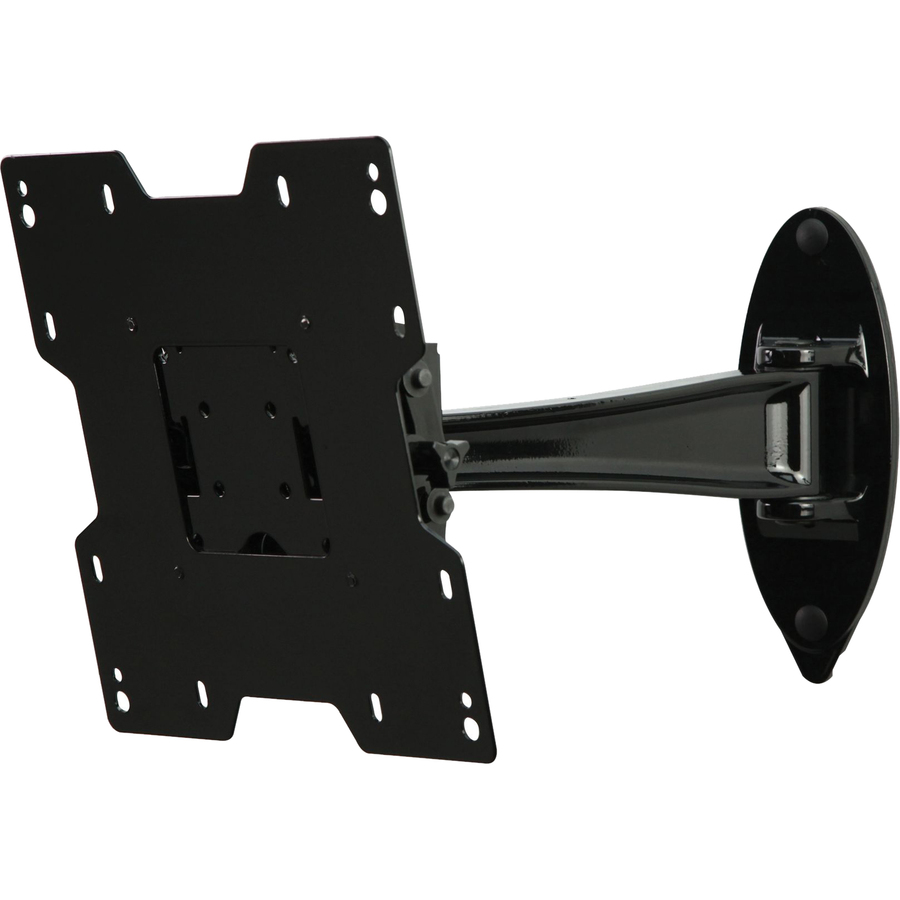

Matching elements of easy installation and user-friendliness are found in this pivot mount. It boasts a low-profile wall plate design that easily attaches to the wall with only two screws. This pivot arm extends away from the wall with ease and closes back up to save space. The arm's multiple pivot points allow the flat panel display to pivot, tilt and roll for the perfect viewing angle adjustment and display leveling. Its fully integrated cable management system eliminates unsightly cable clutter and provides a safeguard. Designed and built in the USA, this mount maintains the same brilliant look as the entire SmartMount® 700 Series line of articulating wall mounts and pivot wall mounts.
Matching elements of easy installation and user-friendliness are found in this pivot mount. It boasts a low-profile wall plate design that easily attaches to the wall with only two screws. This pivot arm extends away from the wall with ease and closes back up to save space. The arm's multiple pivot points allow the flat panel display to pivot, tilt and roll for the perfect viewing angle adjustment and display leveling. Its fully integrated cable management system eliminates unsightly cable clutter and provides a safeguard. Designed and built in the USA, this mount maintains the same brilliant look as the entire SmartMount® 700 Series line of articulating wall mounts and pivot wall mounts.
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | DBL16967 |
| Manufacturer Website Address | http://www.peerless-av.com |
| Brand Name | Peerless-AV® |
| Product Line | SmartMount® |
| Product Series | 700 |
| Product Model | SP740P |
| Product Name | Pivot Wall Mount For 22"-40" Flat Panel Displays |
| Marketing Information | Matching elements of easy installation and user-friendliness are found in this pivot mount. It boasts a low-profile wall plate design that easily attaches to the wall with only two screws. This pivot arm extends away from the wall with ease and closes back up to save space. The arm's multiple pivot points allow the flat panel display to pivot, tilt and roll for the perfect viewing angle adjustment and display leveling. Its fully integrated cable management system eliminates unsightly cable clutter and provides a safeguard. Designed and built in the USA, this mount maintains the same brilliant look as the entire SmartMount® 700 Series line of articulating wall mounts and pivot wall mounts. |
| Product Type | Wall Mount |
Product Information | |
|---|---|
| Device Supported | Flat Panel Display |
| Maximum Load Capacity | 80 lb |
| Minimum Screen Size Supported | 22" |
| Maximum Screen Size Supported | 40" |
| Features |
|
Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Black |
| VESA Mount Compatible | Yes |
| Mounting Pattern |
|
| Height | 9.35" |
| Width | 14.24" |
| Depth | 11.80" |
Display can be held as close to the wall as 2.99" (76mm) or be extended as far as 11.8" (299mm)
Miscellaneous | |
|---|---|
| Additional Information | Display can be held as close to the wall as 2.99" (76mm) or be extended as far as 11.8" (299mm) |
| Certifications & Standards |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
|---|---|
| Limited Warranty | 5 Year |
