DBL26204

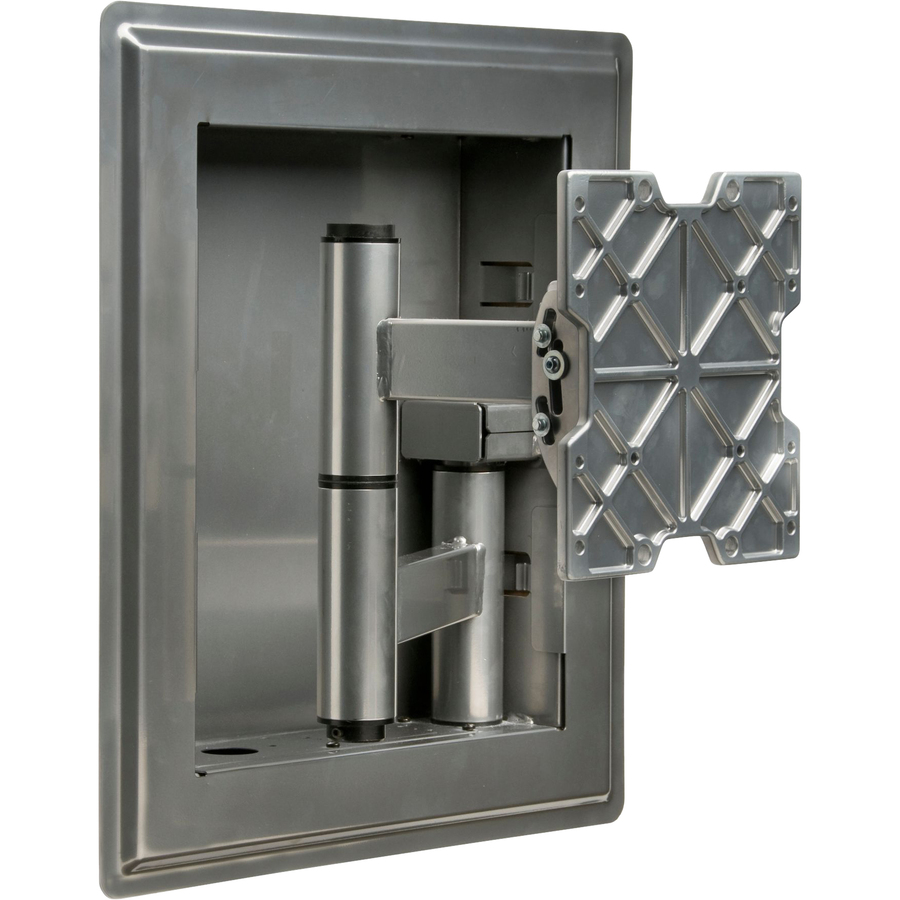

Maximize your flat panel experience by installing it truly flat against the wall* with the industry's first universal in-wall mounting solution for up to 71" displays. Installation is quick and easy thanks to the mounts self-locating tabs that center the in-wall box snugly between standard 16" wood stud centers. View the flat panel display in its no-profile home position, or extend the arm over 19" to watch it virtually anywhere else within the room. This mount holds displays so flat against the wall; it may even allow installations to meet ADA requirements.*Display will be positioned flat against the wall when used only with VESA®100/200x100/200x200mm compliant flat panel displays. Addition of adapter plate will increase distance from wall.
Maximize your flat panel experience by installing it truly flat against the wall* with the industry's first universal in-wall mounting solution for up to 71" displays. Installation is quick and easy thanks to the mounts self-locating tabs that center the in-wall box snugly between standard 16" wood stud centers. View the flat panel display in its no-profile home position, or extend the arm over 19" to watch it virtually anywhere else within the room. This mount holds displays so flat against the wall; it may even allow installations to meet ADA requirements.*Display will be positioned flat against the wall when used only with VESA®100/200x100/200x200mm compliant flat panel displays. Addition of adapter plate will increase distance from wall.
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | DBL26204 |
| Manufacturer Website Address | http://www.peerless-av.com |
| Brand Name | Peerless-AV® |
| Product Model | IM760P-S |
| Product Name | In Wall Mount For 32" to 71" Flat Panel Displays Weighing Up to 200 lb |
| Marketing Information | Maximize your flat panel experience by installing it truly flat against the wall* with the industry's first universal in-wall mounting solution for up to 71" displays. Installation is quick and easy thanks to the mounts self-locating tabs that center the in-wall box snugly between standard 16" wood stud centers. View the flat panel display in its no-profile home position, or extend the arm over 19" to watch it virtually anywhere else within the room. This mount holds displays so flat against the wall; it may even allow installations to meet ADA requirements.*Display will be positioned flat against the wall when used only with VESA®100/200x100/200x200mm compliant flat panel displays. Addition of adapter plate will increase distance from wall. |
| Product Type | Wall Mount |
Product Information | |
|---|---|
| Device Supported | Flat Panel Display |
| Maximum Load Capacity | 200 lb |
| Minimum Screen Size Supported | 32" |
| Maximum Screen Size Supported | 71" |
| Features |
|
Physical Characteristics | |
|---|---|
| Color Family | Silver |
| Product Color | Silver |
| VESA Mount Compatible | Yes |
| Mounting Pattern |
|
| Height | 21.86" |
| Width | 19.46" |
| Depth | 22.56" |
UL
Miscellaneous | |
|---|---|
| Additional Information |
|
| Certifications & Standards | UL |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
|---|---|
| Limited Warranty | 5 Year |
PLP-V8X4-LG
Certifications:
No pricing available. Call for Quote.
