DS-MBZ947L-3X1

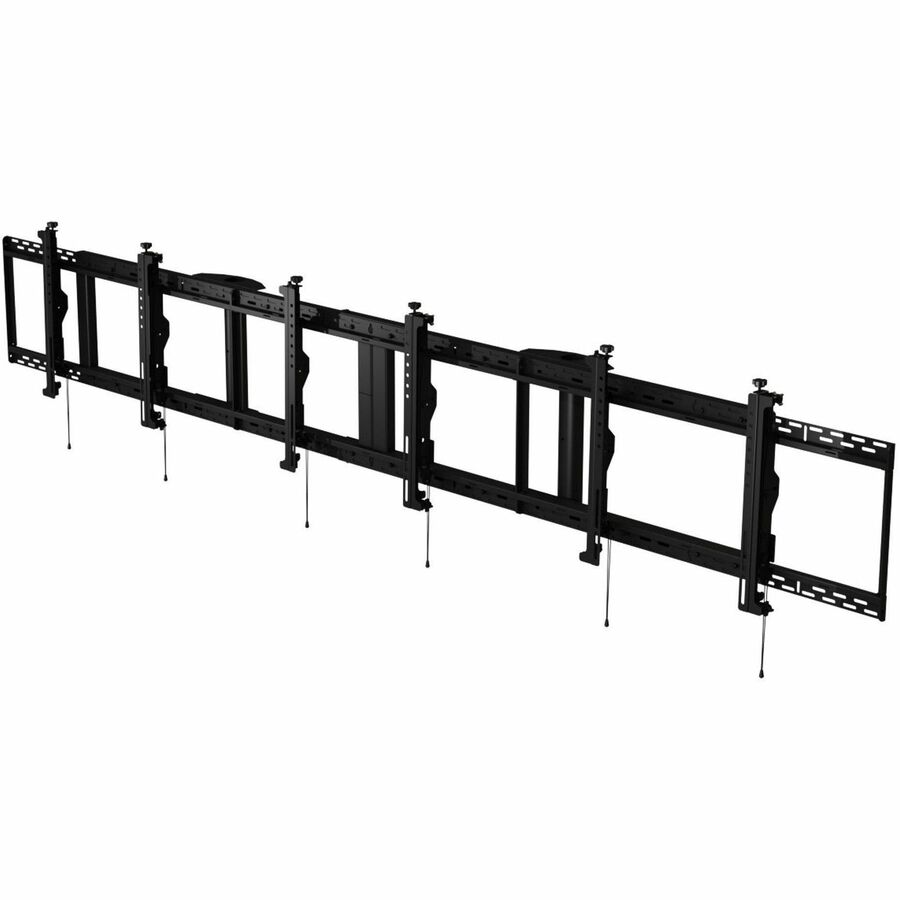

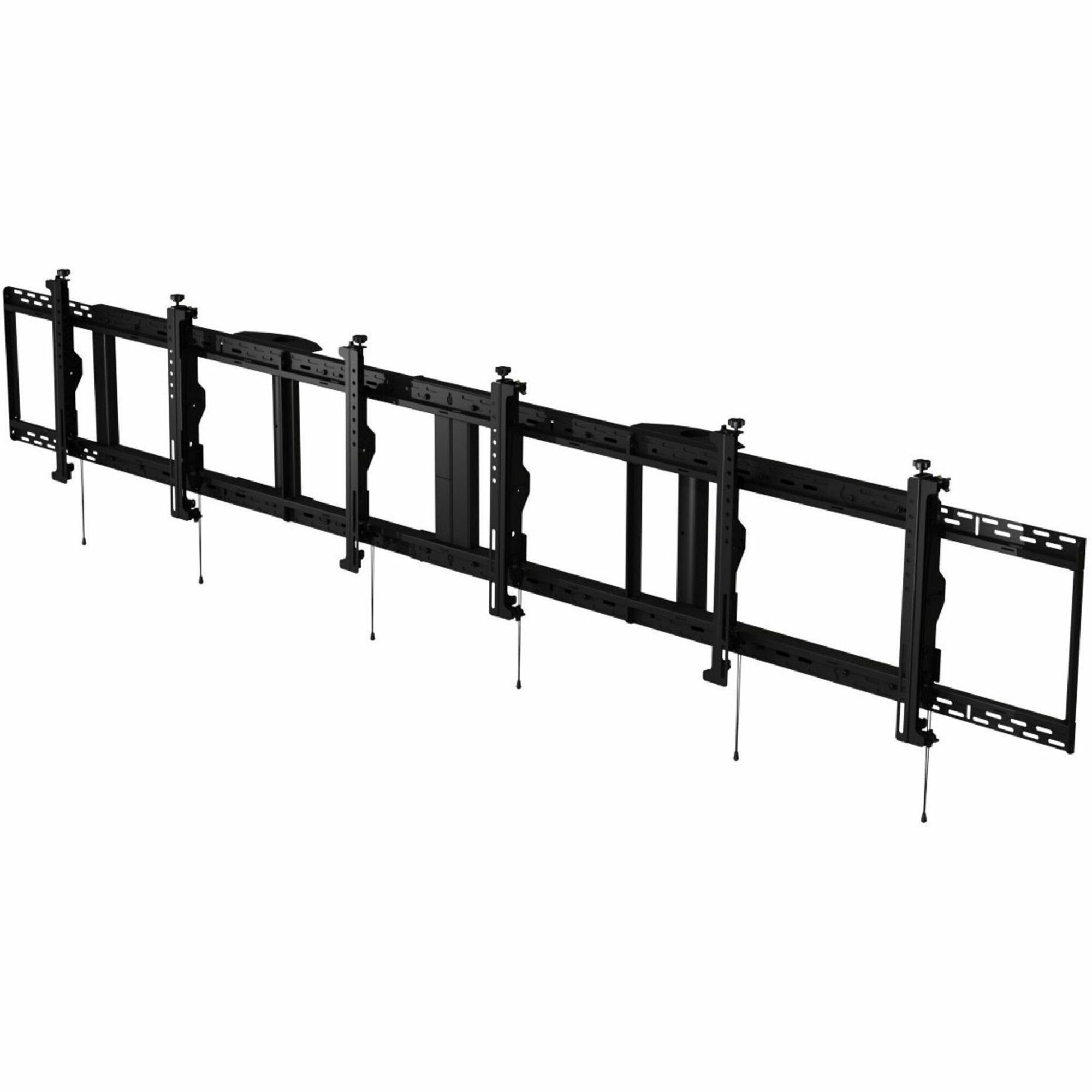

Peerless-AV's quick service restaurant (QSR) Menu Board Ceiling Mount is designed to create a seamless mounting surface through connecting wall plates. Continuous and fixed tilt options allow all displays to be tilted at the same angle with ease, creating flawless alignment. The QSR Menu Board Mount has a tool-less 8pt adjustment to position all of the displays on the same plane. Quick connect adaptor rails quickly attach to the support frame with an auto latch, easing the set up and making the QSR Menu Board Mount the perfect mounting solution.
ADD1012
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
Certifications:
Peerless-AV's quick service restaurant (QSR) Menu Board Ceiling Mount is designed to create a seamless mounting surface through connecting wall plates. Continuous and fixed tilt options allow all displays to be tilted at the same angle with ease, creating flawless alignment. The QSR Menu Board Mount has a tool-less 8pt adjustment to position all of the displays on the same plane. Quick connect adaptor rails quickly attach to the support frame with an auto latch, easing the set up and making the QSR Menu Board Mount the perfect mounting solution.
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | DS-MBZ947L-3X1 |
| Manufacturer Website Address | http://www.peerless-av.com |
| Brand Name | SmartMount® |
| Product Series | DS-MBZ947L-3X1 |
| Product Model | DS-MBZ947L-3X1 |
| Product Name | DS-MBZ947L-3X1 Ceiling Mount |
| Marketing Information | Peerless-AV's quick service restaurant (QSR) Menu Board Ceiling Mount is designed to create a seamless mounting surface through connecting wall plates. Continuous and fixed tilt options allow all displays to be tilted at the same angle with ease, creating flawless alignment. The QSR Menu Board Mount has a tool-less 8pt adjustment to position all of the displays on the same plane. Quick connect adaptor rails quickly attach to the support frame with an auto latch, easing the set up and making the QSR Menu Board Mount the perfect mounting solution. |
| Packaged Quantity | 1 Unit |
| Product Type | Ceiling Mount |
Product Information | |
|---|---|
| Device Supported |
|
| Number of Displays Supported | 3 |
| Maximum Load Capacity | 300 lb |
| Minimum Screen Size Supported | 46" |
| Maximum Screen Size Supported | 48" |
| Features |
|
| Orientation | Landscape |
| Minimum Tilt Angle | 0° |
| Maximum Tilt Angle | 15° |
Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Black |
| Finishing |
|
| VESA Mount Compatible | Yes |
| Mounting Pattern | 2944 x 400 |
| Form Factor | Ceiling Mountable |
| Height | 19.49" |
| Width | 116.25" |
| Depth | 7.47" |
| Weight (Approximate) | 88.40 lb |
Miscellaneous | |
|---|---|
| Package Contents |
|
| Application/Usage | Quick Serve Restaurant (QSR) |
| Indoor/Outdoor | Indoor |
| Certifications & Standards | RoHS, TAA, VESA |
| Manufacturer Product Class | Menu Board Ceiling |
| Assembly Required | Yes |
| Country of Origin | United States |
| TAA Compliant | Yes |
Warranty | |
|---|---|
| Limited Warranty | 5 Year |
|
| Mount Surface |
|
|---|
| Durability |
|
|---|
| Restriction of Hazardous Substances (RoHS) |
