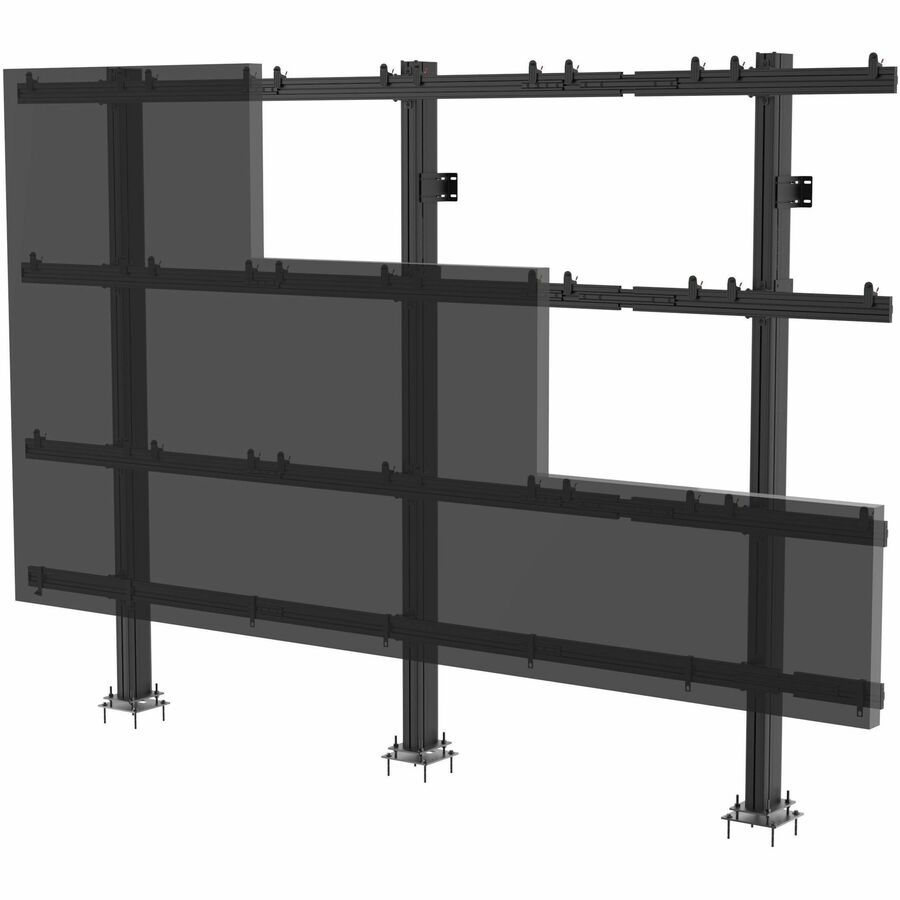

The SEAMLESS Connect Universal Series by Peerless-AV® offers a versatile lineup of substructures for environments where wall mounting is not an option. Purpose-built for dvLED video walls and all-in-one displays, the SEAMLESS Connect Universal Floor-to-Wall Mount supports full system weight with strength and stability. Its slim, space-saving design simplifies setup and speeds up installation. The quad post leveling base and wall tie-back brackets ensure a plumb structure and a perfectly flat mounting surface for dvLED installation - Ideal for corporate lobbies, retail, hospitality, showrooms, events, and entertainment spaces.
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | LEDFWS-6x6 |
| Manufacturer Website Address | http://www.peerless-av.com |
| Brand Name | Peerless-AV® |
| Product Line | SEAMLESS Connect |
| Product Series | LEDFW |
| Product Model | LEDFWS-6x6 |
| Product Name | SEAMLESS Connect Universal dvLED Floor-to-Wall Mount |
| Marketing Information | The SEAMLESS Connect Universal Series by Peerless-AV® offers a versatile lineup of substructures for environments where wall mounting is not an option. Purpose-built for dvLED video walls and all-in-one displays, the SEAMLESS Connect Universal Floor-to-Wall Mount supports full system weight with strength and stability. Its slim, space-saving design simplifies setup and speeds up installation. The quad post leveling base and wall tie-back brackets ensure a plumb structure and a perfectly flat mounting surface for dvLED installation - Ideal for corporate lobbies, retail, hospitality, showrooms, events, and entertainment spaces. |
| Packaged Quantity | 1 Unit |
| Product Type | Floor to Wall Mount |
Product Information | |
|---|---|
| Device Supported | dvLED |
| Display Configuration | 6x6 |
| Number of Displays Supported | 36 |
| Maximum Load Capacity | 900 lb |
| Maximum Screen Size Supported | 27" |
| Minimum Adjustable Depth | 8.21" |
| Maximum Adjustable Depth | 13.21" |
| Features |
|
| Orientation | Landscape/Portrait |
| Mount Profile | Flat |
| Mount Function |
|
| Mount Surface |
|
Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Black |
| Finishing |
|
| Product Material |
|
| Form Factor |
|
| Height | 96.22" |
| Width | 12.01 ft |
| Depth | 13.21" |
| Weight (Approximate) | 177 lb |
Miscellaneous | |
|---|---|
| Package Contents |
|
| Application/Usage |
|
| Manufacturer Product Class | Floor to Wall |
| Assembly Required | Yes |
Warranty | |
|---|---|
| Limited Warranty | 5 Year |
LEDFWS-6X6
The SEAMLESS Connect Universal Series by Peerless-AV® offers a versatile lineup of substructures for environments where wall mounting is not an option. Purpose-built for dvLED video walls and all-in-one displays, the SEAMLESS Connect Universal Floor-to-Wall Mount supports full system weight with strength and stability. Its slim, space-saving design simplifies setup and speeds up installation. The quad post leveling base and wall tie-back brackets ensure a plumb structure and a perfectly flat mounting surface for dvLED installation - Ideal for corporate lobbies, retail, hospitality, showrooms, events, and entertainment spaces.
Product Name
Peerless-AV® SEAMLESS Connect Universal dvLED Floor-to-Wall Mount for 27" Displays up to 610mm Wide in a 6x6 Configuration
Peerless-AV® SEAMLESS Connect Universal dvLED Trim Kit for 27" Displays up to 610mm Wide in a 6x6 Configuration
Peerless-AV® SEAMLESS Connect Universal dvLED Floor-to-Ceiling Mount for 27" Displays up to 610mm Wide in a 6x6 Configuration
Peerless-AV® SEAMLESS Connect Universal dvLED Bolt Down Pedestal for 27" Displays up to 610mm Wide in a 6x6 Configuration
Maximum Screen Size Supported
27"
27"
27"
27"
Maximum Load Capacity
900 lb
-
900 lb
900 lb
Features
| SKU | Maximum Screen Size Supported | Display Configuration |
|---|---|---|
| LEDFWS-4X4 | 27" | 4x4 |
| LEDFWS-5X5 | 27" | 5x5 |
| LEDFWS-6X6 | 27" | 6x6 |
| LEDFWS-8X8 | 27" | 8x8 |
| LEDFWM-3X3 | 43" | 3x3 |
| LEDFWM-4X4 | 43" | 4x4 |
| LEDFWM-5X5 | 43" | 5x5 |
| LEDFWL-2X2 | 55" | 2x2 |
| LEDFWL-3X3 | 55" | 3x3 |
| LEDFWL-4X4 | 55" | 4x4 |
Don't see a configuration that fits your needs?
Use our dvLED Configurator tool to customize your own.
No pricing available. Call for Quote.
