STP680

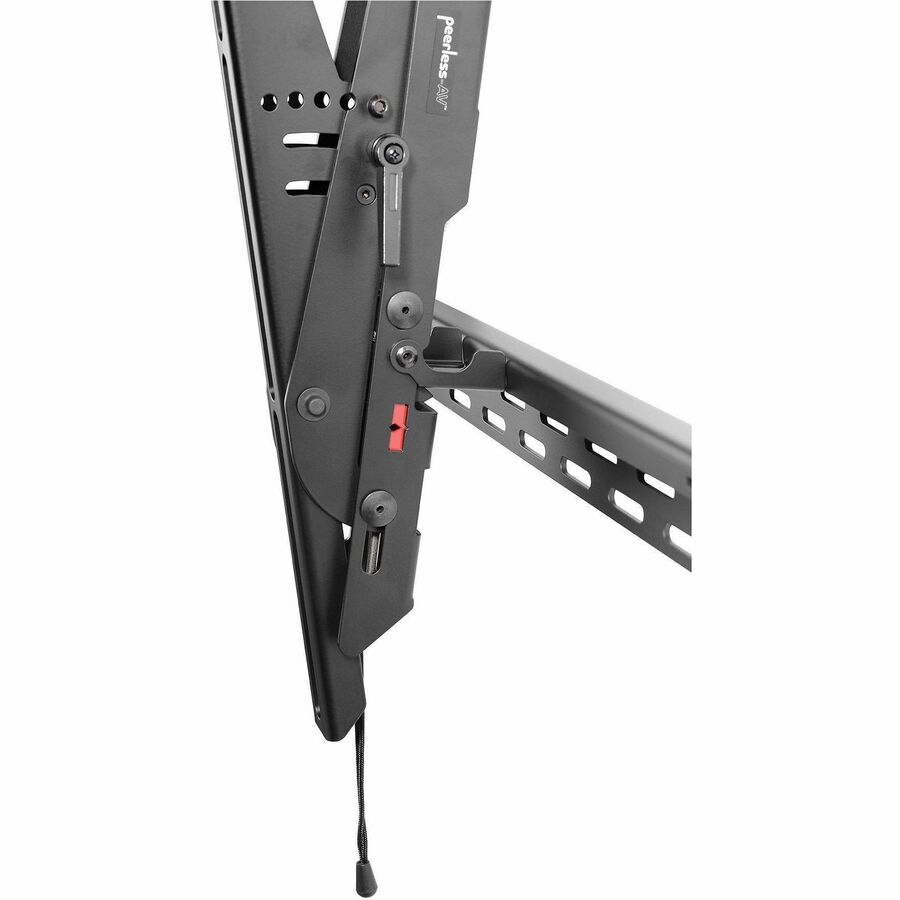

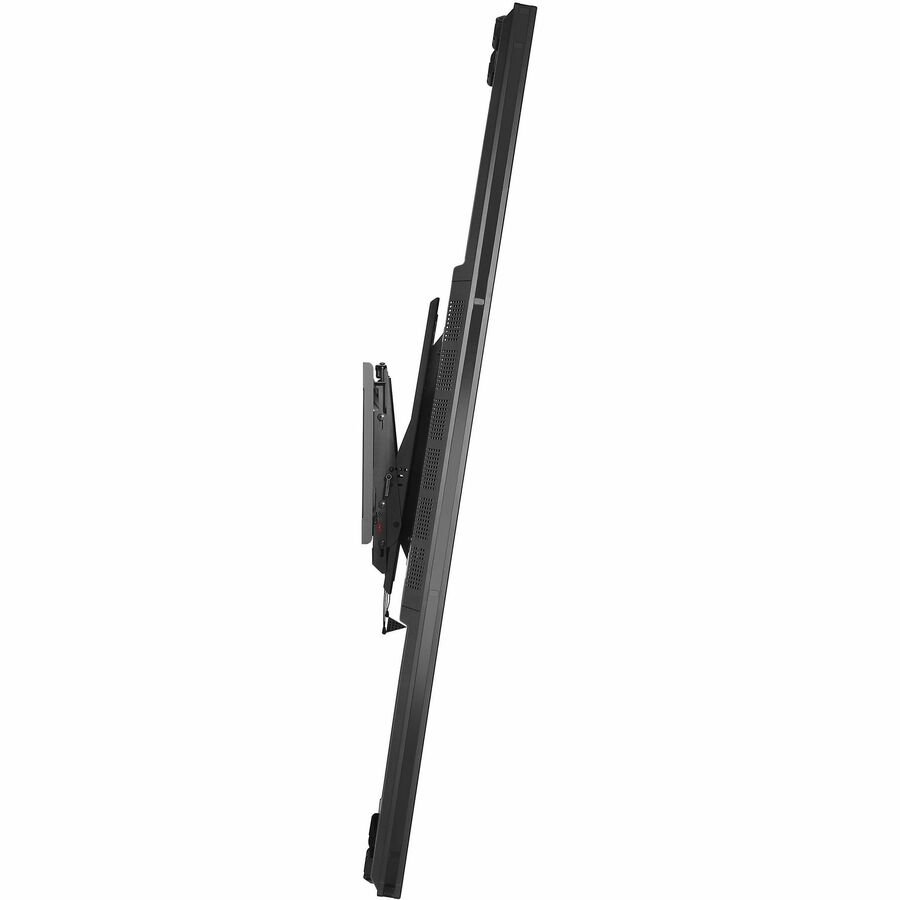

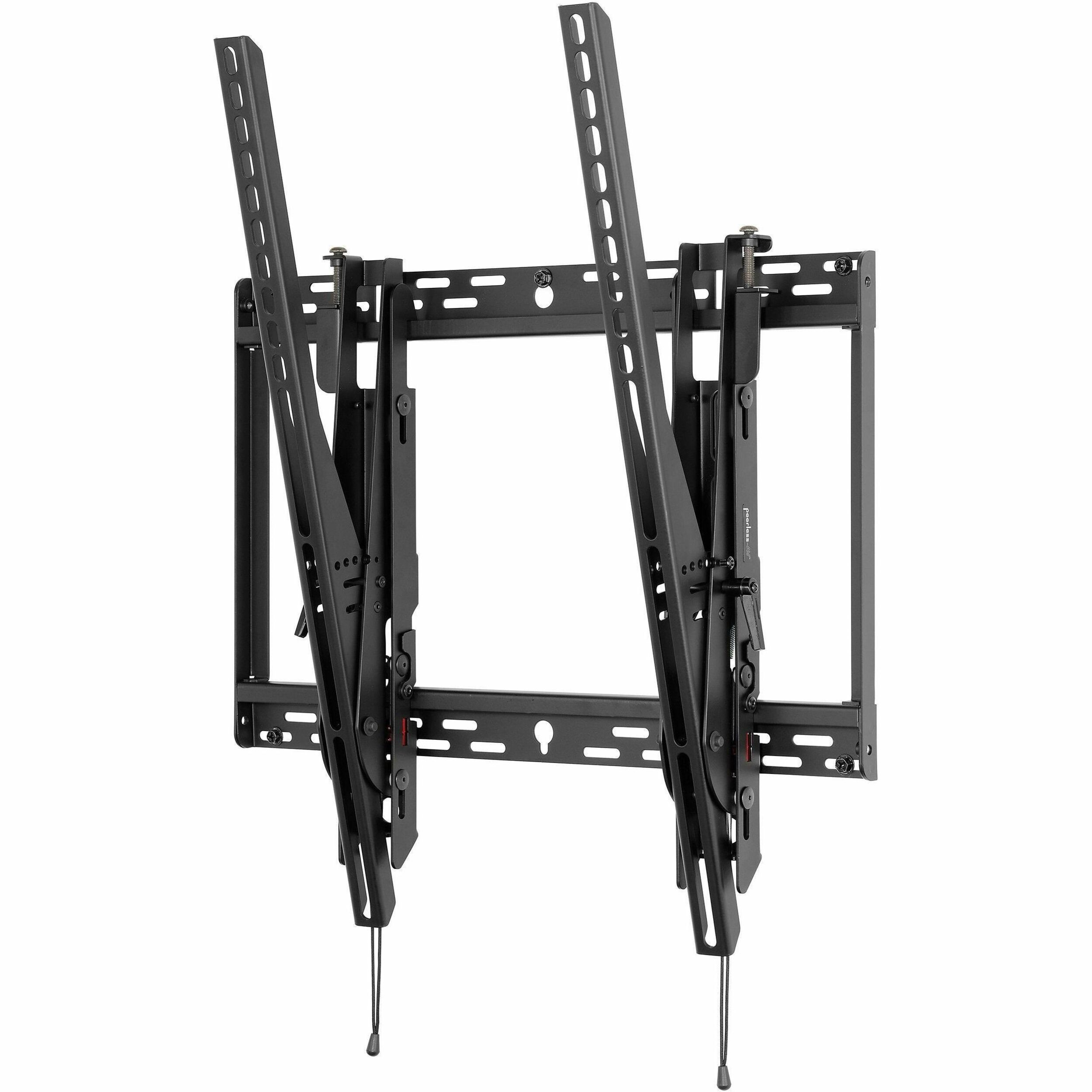

Peerless-AV's SmartMount® Universal Portrait Tilt Wall Mount delivers an ultra-slim profile designed to hold large displays up to 350lb. Installation and maintenance are made easy with the STP680's robust feature set. Auto-latching adaptor rails automatically secure the display without the use of a tool. The mount's built-in kickstand holds the display safely from the wall during cable routing, while the open wall plate allows for increased electrical and cable management options. Horizontal and vertical display adjustment allow for quick fine-tuning of the mounted display.
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
Certifications:
Peerless-AV's SmartMount® Universal Portrait Tilt Wall Mount delivers an ultra-slim profile designed to hold large displays up to 350lb. Installation and maintenance are made easy with the STP680's robust feature set. Auto-latching adaptor rails automatically secure the display without the use of a tool. The mount's built-in kickstand holds the display safely from the wall during cable routing, while the open wall plate allows for increased electrical and cable management options. Horizontal and vertical display adjustment allow for quick fine-tuning of the mounted display.
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | STP680 |
| Manufacturer Website Address | http://www.peerless-av.com |
| Brand Name | SmartMount® |
| Product Series | STP680 |
| Product Model | STP680 |
| Product Name | Universal Portrait Tilt Wall Mount for 46" to 90" Displays |
| Marketing Information | Peerless-AV's SmartMount® Universal Portrait Tilt Wall Mount delivers an ultra-slim profile designed to hold large displays up to 350lb. Installation and maintenance are made easy with the STP680's robust feature set. Auto-latching adaptor rails automatically secure the display without the use of a tool. The mount's built-in kickstand holds the display safely from the wall during cable routing, while the open wall plate allows for increased electrical and cable management options. Horizontal and vertical display adjustment allow for quick fine-tuning of the mounted display. |
| Packaged Quantity | 1 Unit |
| Product Type | Wall Mount |
Product Information | |
|---|---|
| Device Supported |
|
| Maximum Load Capacity | 350 lb |
| Minimum Screen Size Supported | 46" |
| Maximum Screen Size Supported | 90" |
| Minimum Adjustable Depth | 3.38" |
| Maximum Adjustable Depth | 10.58" |
| Features |
|
| Orientation | Portrait |
| Mount Pattern | Universal |
Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Black |
| Finishing |
|
| VESA Mount Compatible | Yes |
| Mounting Pattern |
|
| Form Factor | Wall Mountable |
| Height | 26.50" |
| Width | 22" |
| Depth | 10.58" |
| Weight (Approximate) | |
Miscellaneous | |
|---|---|
| Package Contents |
|
| Application/Usage | Wall |
| Indoor/Outdoor | Indoor |
| Certifications & Standards | RoHS, TAA, VESA, UL |
| Manufacturer Product Class | Tilt |
| Assembly Required | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| UL Listed | Yes |
Warranty | |
|---|---|
| Limited Warranty | 5 Year |
| Mount Profile |
|---|
| Slim Profile |
| Minimum Tilt Angle | -5° |
|---|
| Maximum Tilt Angle | 15° |
|---|
| Mount Function |
|
|---|
| Mount Surface | Wall |
|---|
| Durability | Scratch Resistant |
|---|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
|---|
