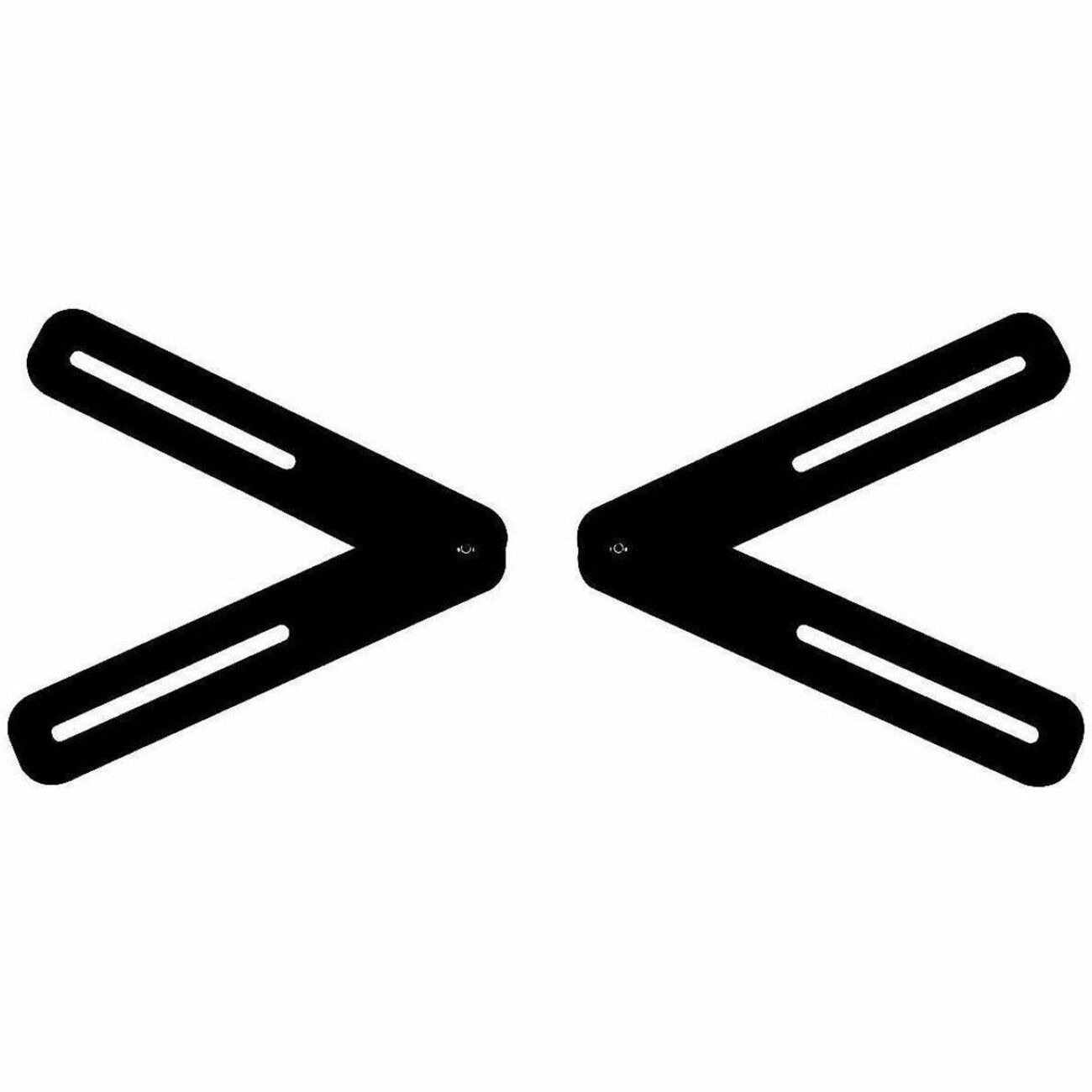

ACSBR1
The ACSBR1 Universal Sound Bar Mount comes with the necessary hardware to mount sound bars with keyholes or threaded interfaces above or below your TV. This mount is height adjustable, so you can minimize the gap between your TV and sound bar. The flexible design can be used with any wall mount that accommodates VESA® mounting patterns up to 6 x 4mm. This mount accommodates a wide range of sound bars and supports a maximum mounting hole spacing up to 39.4" (1mm).
The ACSBR1 Universal Sound Bar Mount comes with the necessary hardware to mount sound bars with keyholes or threaded interfaces above or below your TV. This mount is height adjustable, so you can minimize the gap between your TV and sound bar. The flexible design can be used with any wall mount that accommodates VESA® mounting patterns up to 6 x 4mm. This mount accommodates a wide range of sound bars and supports a maximum mounting hole spacing up to 39.4" (1mm).
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | ACSBR1 |
| Manufacturer Website Address | http://www.peerless-av.com |
| Brand Name | Peerless-AV® |
| Product Series | ACSBR1 |
| Product Model | ACSBR1 |
| Product Name | ACSBR1 Mounting Bracket |
| Marketing Information | The ACSBR1 Universal Sound Bar Mount comes with the necessary hardware to mount sound bars with keyholes or threaded interfaces above or below your TV. This mount is height adjustable, so you can minimize the gap between your TV and sound bar. The flexible design can be used with any wall mount that accommodates VESA® mounting patterns up to 6 x 4mm. This mount accommodates a wide range of sound bars and supports a maximum mounting hole spacing up to 39.4" (1mm). |
| Packaged Quantity | 1 Unit |
| Product Type | Mounting Bracket |
Product Information | |
|---|---|
| Device Supported |
|
| Maximum Load Capacity | 20 lb |
| Minimum Screen Size Supported | 32" |
| Maximum Screen Size Supported | 70" |
| Features |
|
| Mount Pattern | Universal |
| Mount Profile | Flush |
| Height Adjustable | Yes |
| Mount Function | Accessory |
| Mount Surface | Wall |
Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Black |
| Finishing |
|
| VESA Mount Compatible | Yes |
| Mounting Pattern | 600 x 400 |
| Form Factor | Wall Mountable |
| Height | 0.51" |
| Width | 10.57" |
| Depth | 1.50" |
| Weight (Approximate) | 1.50 lb |
Miscellaneous | |
|---|---|
| Package Contents |
|
| Application/Usage | Wall |
| Indoor/Outdoor | Indoor |
| Certifications & Standards | RoHS, TAA, VESA |
| Manufacturer Product Class | Sound Bar Kit |
| Assembly Required | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
|---|---|
| Limited Warranty | 5 Year |
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
