PLCM-4

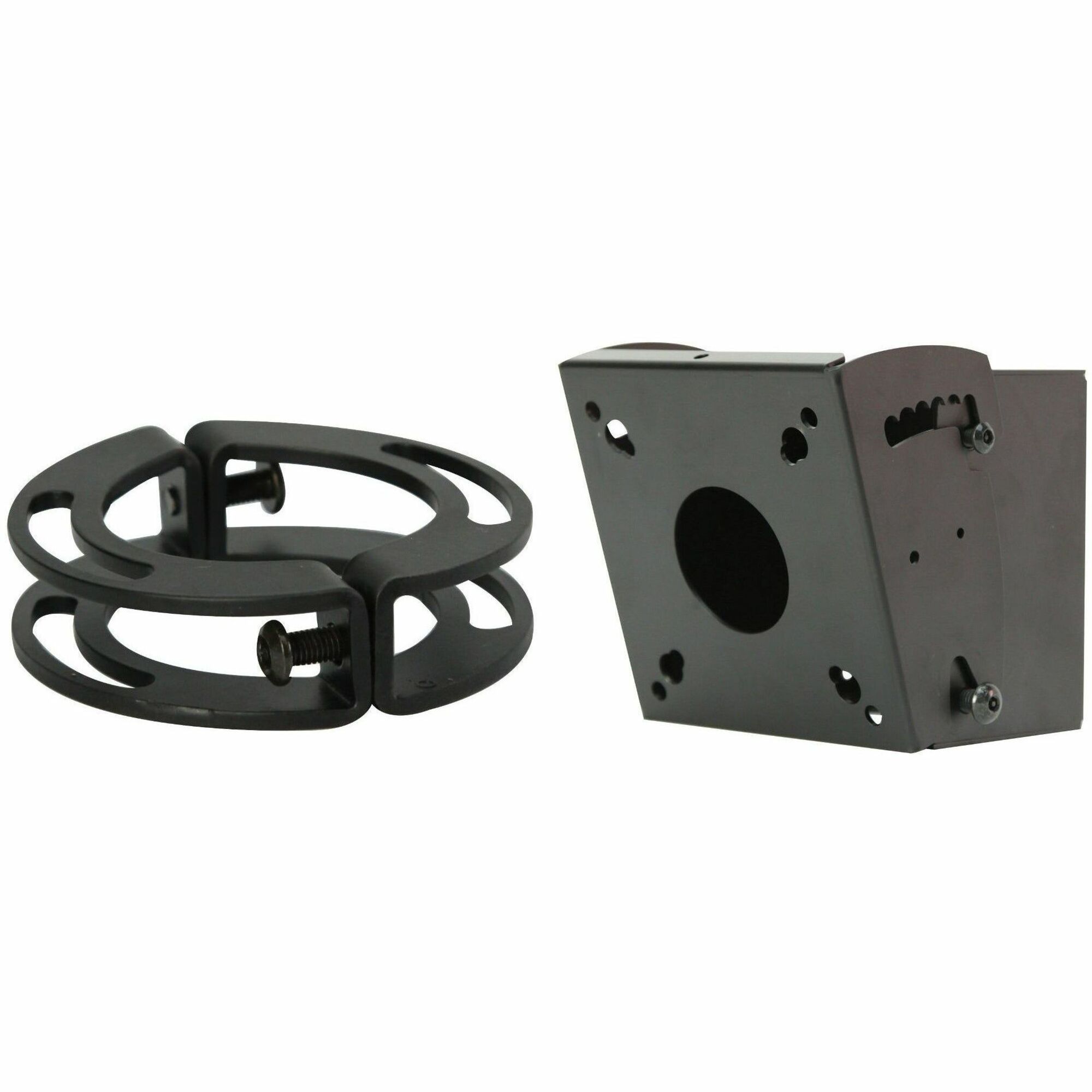

The SmartMount® PLCM-4 Ceiling Mount Tilt Boxes work with all 1.5" NPT extension pipes for versatility, support, and connection. The 1.5" NPT threaded pipes make it simple to customize each mount to your specific application. The PLCM Tilt Boxes can be used in conjunction with Peerless-AV's AEC or EXT columns, along with the PLP adaptor plates for custom ceiling mount applications. These tilt boxes provide -5° to 20° of forward tilt, and 360° of swivel, making it possible to find the perfect viewing angle.
Product Name
Peerless-AV® Ceiling Mount Tilt Boxes for up to 90" Displays
Peerless-AV® SmartMount® Universal Ceiling Mount for 32" to 90" Displays
Peerless-AV® SmartMount® Universal Ceiling Mount for 32'' to 90'' Displays
Maximum Screen Size Supported
90"
90"
90"
Maximum Load Capacity
150 lb
150 lb
150 lb
Mounting Pattern
600 x 400
600 x 400
Features
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
Certifications:
The SmartMount® PLCM-4 Ceiling Mount Tilt Boxes work with all 1.5" NPT extension pipes for versatility, support, and connection. The 1.5" NPT threaded pipes make it simple to customize each mount to your specific application. The PLCM Tilt Boxes can be used in conjunction with Peerless-AV's AEC or EXT columns, along with the PLP adaptor plates for custom ceiling mount applications. These tilt boxes provide -5° to 20° of forward tilt, and 360° of swivel, making it possible to find the perfect viewing angle.
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | PLCM-4 |
| Manufacturer Website Address | http://www.peerless-av.com |
| Brand Name | SmartMount® |
| Product Series | PLCM-4 |
| Product Model | PLCM-4 |
| Product Name | Ceiling Mount Tilt Boxes for up to 90" Displays |
| Marketing Information | The SmartMount® PLCM-4 Ceiling Mount Tilt Boxes work with all 1.5" NPT extension pipes for versatility, support, and connection. The 1.5" NPT threaded pipes make it simple to customize each mount to your specific application. The PLCM Tilt Boxes can be used in conjunction with Peerless-AV's AEC or EXT columns, along with the PLP adaptor plates for custom ceiling mount applications. These tilt boxes provide -5° to 20° of forward tilt, and 360° of swivel, making it possible to find the perfect viewing angle. |
| Packaged Quantity | 1 Unit |
| Product Type | Ceiling Mount |
Product Information | |
|---|---|
| Device Supported | Display |
| Maximum Load Capacity | 150 lb |
| Maximum Screen Size Supported | 90" |
| Features |
|
| Minimum Tilt Angle | -5° |
| Maximum Tilt Angle | 20° |
| Maximum Swivel Angle | 360° |
| Mount Function |
|
| Mount Surface | Ceiling |
Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Black |
| Finishing | Powder Coated |
| VESA Mount Compatible | Yes |
| Mounting Pattern |
|
| Product Material | Cold Rolled Steel |
| Form Factor | Ceiling Mountable |
| Height | 6.09" |
| Width | 5.60" |
| Depth | 3.54" |
Miscellaneous | |
|---|---|
| Package Contents |
|
| Application/Usage |
|
| Indoor/Outdoor | Indoor |
| Certifications & Standards | RoHS, TAA |
| Manufacturer Product Class | Ceiling Mount |
| Assembly Required | Yes |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Environmental Compliance | |
Warranty | |
|---|---|
| Limited Warranty | 5 Year |
| Weight (Approximate) |
|---|
| 2.70 lb |
