PLCM-UNL
Product Name

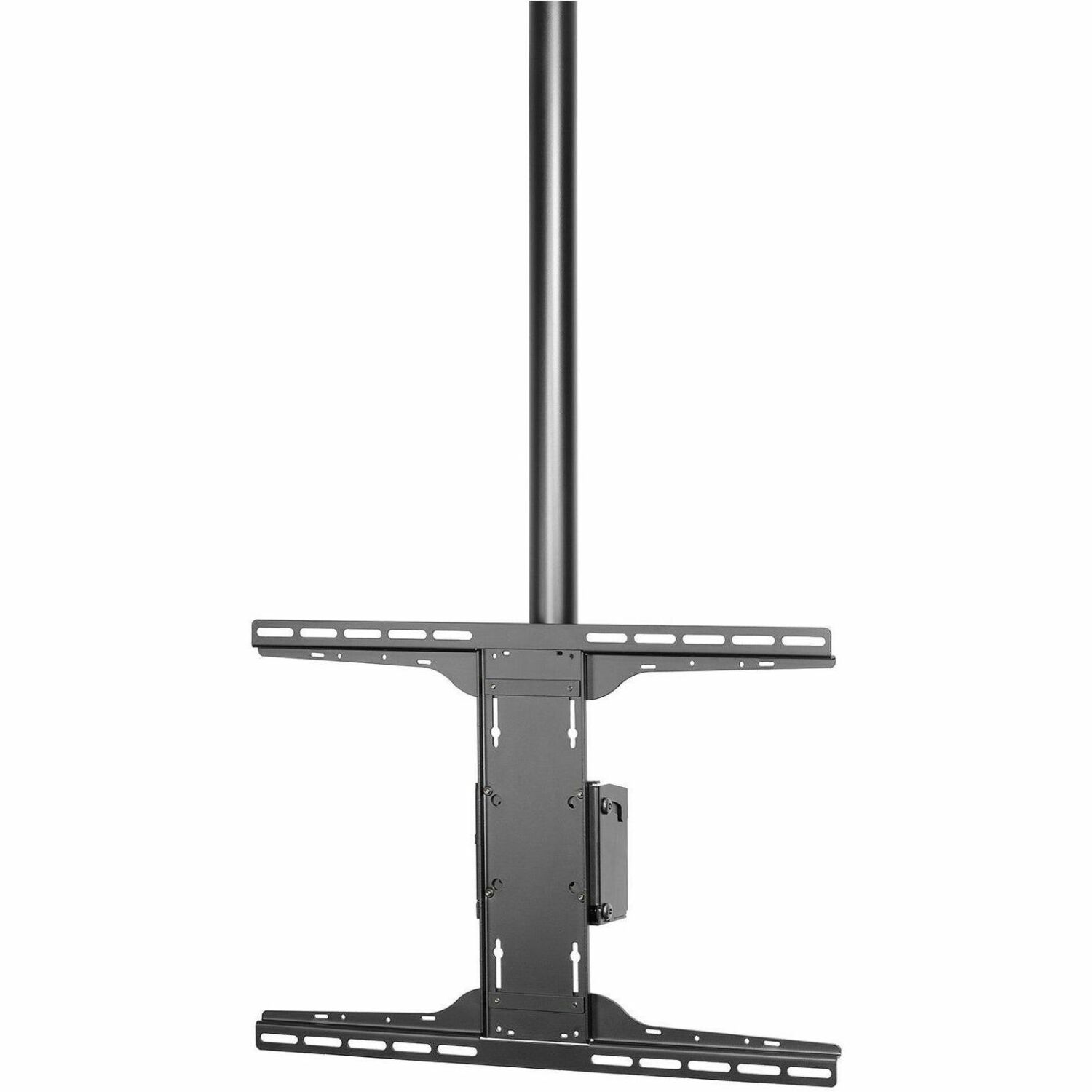

Peerless-AV® SmartMount® Universal Ceiling Mount for 32'' to 90'' Displays
Peerless-AV® SmartMount® Universal Ceiling Mount for 32" to 90" Displays
Minimum Screen Size Supported
32"
Assembly Instructions
32"
Maximum Screen Size Supported
90"
90"
Maximum Load Capacity
150 lb
150 lb
Mounting Pattern
600 x 400
600 x 400
Features
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
Certifications:
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | PLCM-UNL |
| Manufacturer Website Address | http://www.peerless-av.com |
| Brand Name | SmartMount® |
| Product Series | PLCM-UNL |
| Product Model | PLCM-UNL |
| Product Name | Universal Ceiling Mount for 32'' to 90'' Displays |
| Marketing Information | The SmartMount® PLCM-UNL Universal Ceiling Mounts utilize 1.5" NPT extension pipes for versatility, support, and connection. The 1.5" NPT threaded pipes make it simple to customize each mount to your specific application. The PLCM-UNL kit combines the PLP-UNL Universal I-Shaped Adaptor plate, the PLCM-2 tilt box, and a 36" fixed length1.5" NPT column. This combination delivers a drop of 36" for display mounting patterns of up to 600 x 400mm. When combined with a Peerless-AV® ceiling plate CMJ470 (PLCM-UNL-CP), it provides the perfect combination for flat panel ceiling mounting in sports facilities, airports, lobbies, or retail environments. |
| Packaged Quantity | 1 Unit |
| Product Type | Ceiling Mount |
Product Information | |
|---|---|
| Device Supported | Flat Panel Display |
| Maximum Load Capacity | 150 lb |
| Minimum Screen Size Supported | 32" |
| Maximum Screen Size Supported | 90" |
| Features |
|
| Orientation | Landscape/Portrait |
| Minimum Tilt Angle | -5° |
| Maximum Tilt Angle | 20° |
| Maximum Swivel Angle | 360° |
| Mount Function | |
Aluminum - Column
Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Black |
| Finishing | Powder Coated |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 600 x 400 |
| Material Details | Aluminum - Column |
| Form Factor | Ceiling Mountable |
| Height | 43.23" |
| Width | 24.38" |
| Depth | 4.03" |
Miscellaneous | |
|---|---|
| Package Contents |
|
| Application/Usage |
|
| Indoor/Outdoor | Indoor |
| Certifications & Standards | RoHS, TAA, VESA, UL |
| Manufacturer Product Class | Ceiling Mount |
| Assembly Required | Yes |
| Country of Origin | United States |
| TAA Compliant | Yes |
Warranty | |
|---|---|
| Limited Warranty | 5 Year |
|
| Mount Surface | Ceiling |
|---|
| Weight (Approximate) |
|---|
| 22.80 lb |
| UL Listed | Yes |
|---|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
|---|
