IM747PU

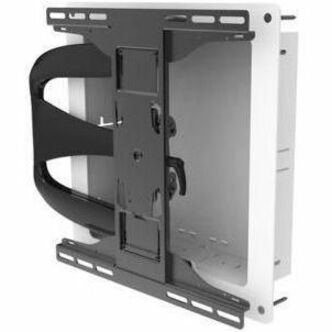

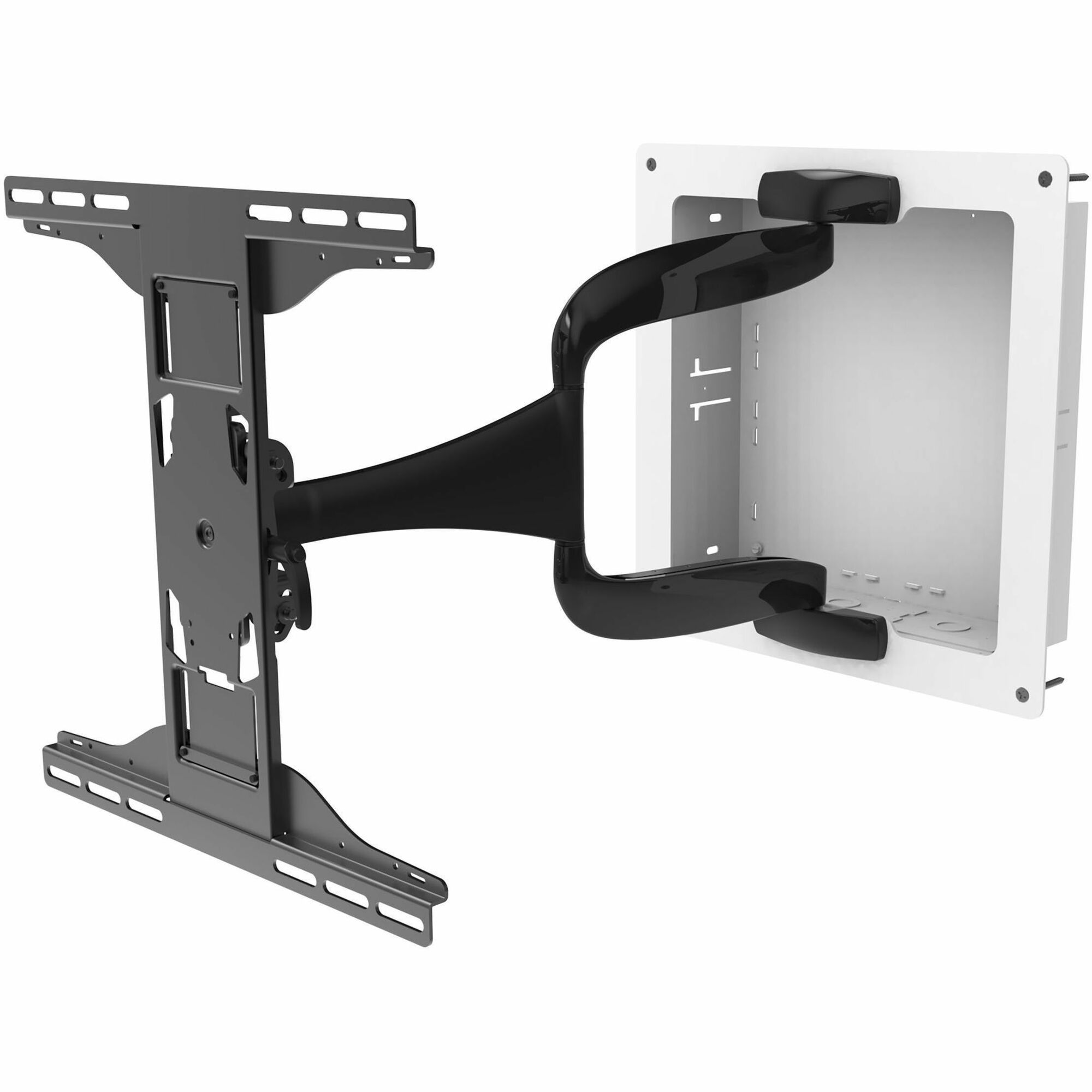

Peerless-AV's Articulating Mount with a built-in In-Wall Box is designed to provide a robust solution for low profile/recessed applications requiring access to power and ample space for AV electronics. The articulating mount swings away from the wall to provide access to the rear of the display and components inside the In-Wall Box. IM747PU is ADA compliant when used with displays 2" thick or less.
42"
Maximum Screen Size Supported
65"
90"
Maximum Load Capacity
80 lb
150 lb
Mounting Pattern
400 x 400
800 x 400
Features
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
Certifications:
Peerless-AV's Articulating Mount with a built-in In-Wall Box is designed to provide a robust solution for low profile/recessed applications requiring access to power and ample space for AV electronics. The articulating mount swings away from the wall to provide access to the rear of the display and components inside the In-Wall Box. IM747PU is ADA compliant when used with displays 2" thick or less.
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | IM747PU |
| Manufacturer Website Address | http://www.peerless-av.com |
| Brand Name | DesignerSeries™ |
| Product Series | IM747PU |
| Product Model | IM747PU |
| Product Name | Articulating Mount with In-Wall Box for 37" to 65" Ultra-Thin Displays |
| Marketing Information | Peerless-AV's Articulating Mount with a built-in In-Wall Box is designed to provide a robust solution for low profile/recessed applications requiring access to power and ample space for AV electronics. The articulating mount swings away from the wall to provide access to the rear of the display and components inside the In-Wall Box. IM747PU is ADA compliant when used with displays 2" thick or less. |
| Packaged Quantity | 1 Unit |
| Product Type | Wall Mount |
Product Information | |
|---|---|
| Device Supported | Display |
| Minimum Load Capacity | 25 lb |
| Maximum Load Capacity | 80 lb |
| Minimum Screen Size Supported | 37" |
| Maximum Screen Size Supported | 65" |
| Minimum Adjustable Depth | 1.94" |
| Maximum Adjustable Depth | 25.03" |
| Features |
|
| Orientation | Landscape/Portrait |
| Mount Pattern Compatibility Type | |
Physical Characteristics | |
|---|---|
| Color Family | Dual Color |
| Product Color |
|
| Finishing |
|
| VESA Mount Compatible | Yes |
| Mounting Pattern | 400 x 400 |
| Minimum Mounting Pattern | 200 x 100 |
| Form Factor | Wall Mountable |
| Height | 17.75" |
| Width | 20.75" |
| Depth | 25.03" |
RACO 420 gang box
Miscellaneous | |
|---|---|
| Package Contents |
|
| Application/Usage |
|
| Compatibility | RACO 420 gang box |
| Certifications & Standards | RoHS, TAA, UL |
| Manufacturer Product Class | In Wall Mount |
| Assembly Required | Yes |
| TAA Compliant | Yes |
| UL Listed | |
Warranty | |
|---|---|
| Limited Warranty | 5 Year |
| Mount Profile | Low Profile |
|---|
| Minimum Tilt Angle | -5° |
|---|
| Maximum Tilt Angle | 15° |
|---|
| Minimum Swivel Angle | -90° |
|---|
| Maximum Swivel Angle | 90° |
|---|
| Mount Function |
|
|---|
| Mount Surface | Wall |
|---|
| Durability | Scratch Resistant |
|---|
| Weight (Approximate) | 36.50 lb |
|---|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
|---|
