LCT620A-G

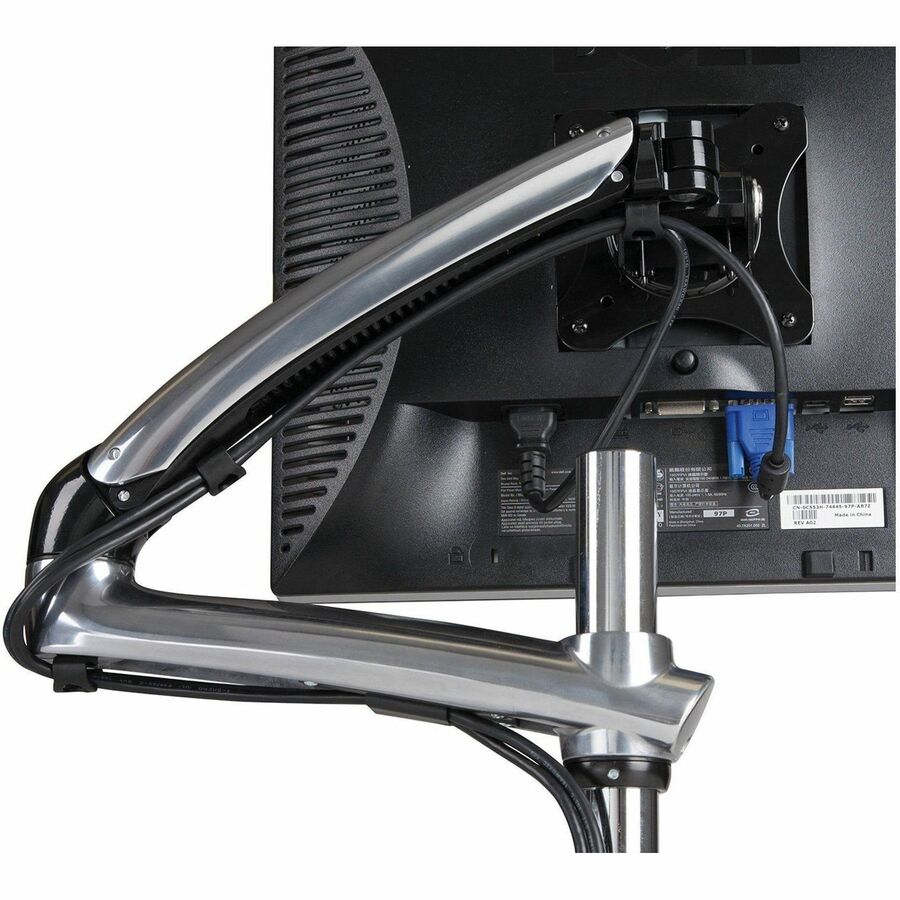

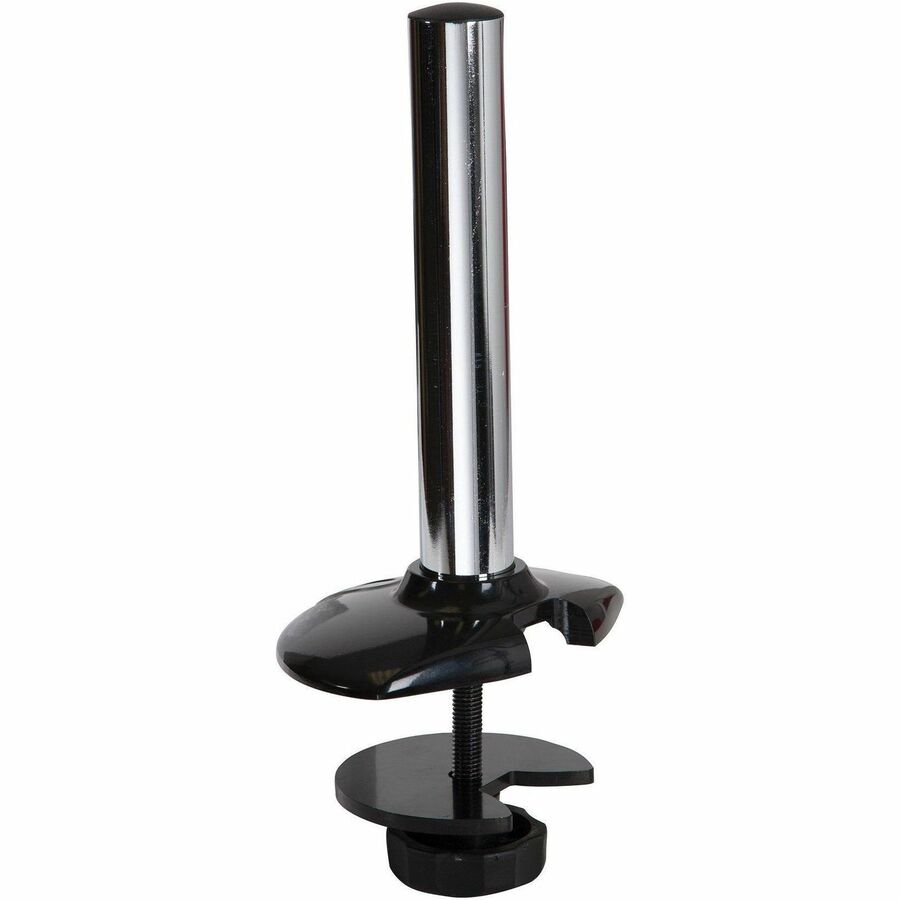

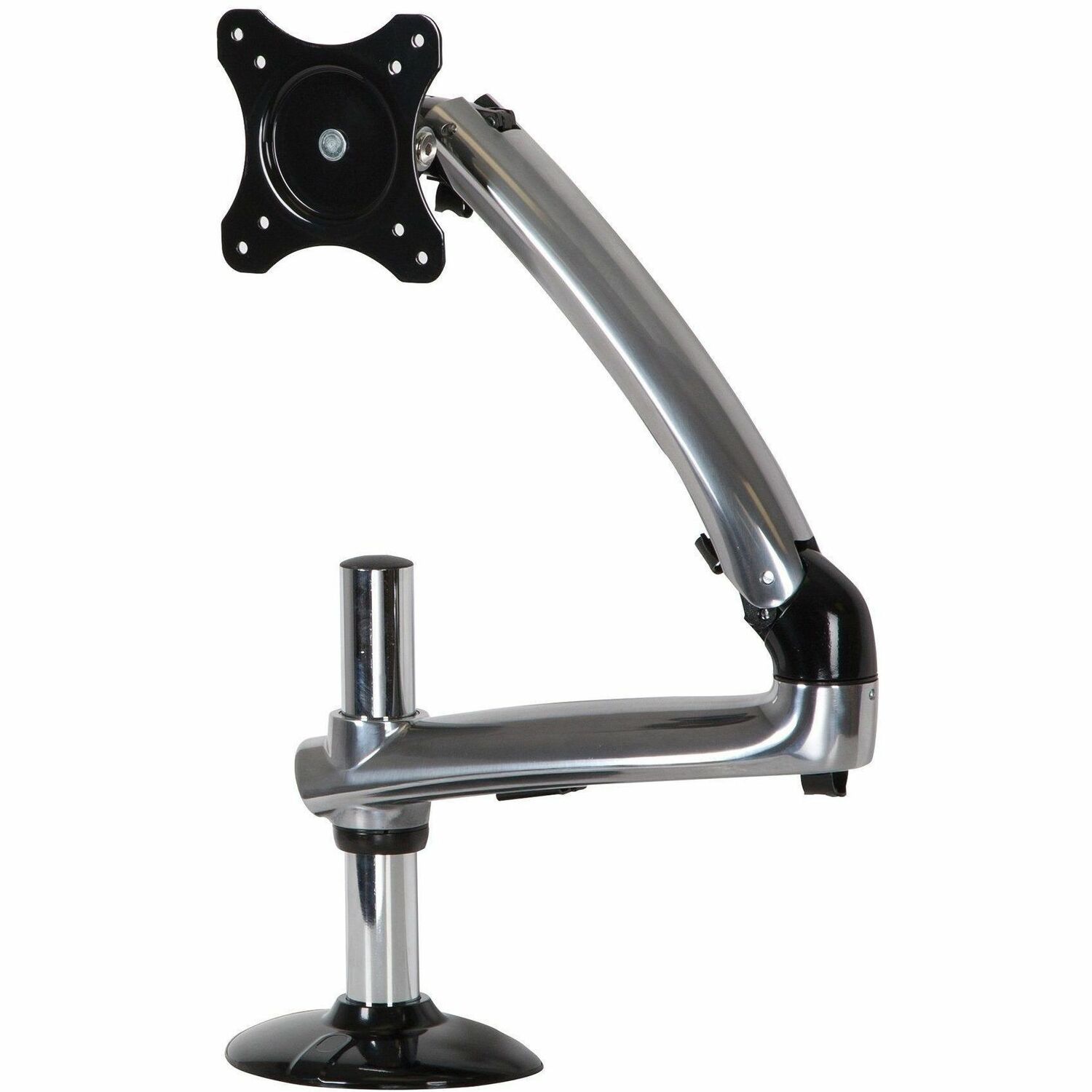

The LCT620A-G Grommet Base Desktop Monitor Mounts feature an attractive height adjustable articulating arm that provides perfect ergonomics with optimum monitor positioning for virtually all users. The grommet mounting base allows for limitless mounting options on any desktop or countertop surface between ½" to 2" (12 to 55mm) thick.
Product Datasheet
Minimum Screen Size Supported
10"
-
10"
Maximum Screen Size Supported
38"
49"
38"
Maximum Load Capacity
17.80 lb
60 lb
17.80 lb
Mounting Pattern
Features
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
Certifications:
The LCT620A-G Grommet Base Desktop Monitor Mounts feature an attractive height adjustable articulating arm that provides perfect ergonomics with optimum monitor positioning for virtually all users. The grommet mounting base allows for limitless mounting options on any desktop or countertop surface between ½" to 2" (12 to 55mm) thick.
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | LCT620A-G |
| Manufacturer Website Address | http://www.peerless-av.com |
| Brand Name | Peerless-AV® |
| Product Series | LCT620A-G |
| Product Model | LCT620A-G |
| Product Name | Grommet Base Desktop Monitor Arm Mount for up to 38" Monitors |
| Marketing Information | The LCT620A-G Grommet Base Desktop Monitor Mounts feature an attractive height adjustable articulating arm that provides perfect ergonomics with optimum monitor positioning for virtually all users. The grommet mounting base allows for limitless mounting options on any desktop or countertop surface between ½" to 2" (12 to 55mm) thick. |
| Packaged Quantity | 1 Unit |
| Product Type | Mounting Arm |
Product Information | |
|---|---|
| Device Supported | Monitor |
| Minimum Load Capacity | 8.40 lb |
| Maximum Load Capacity | 17.80 lb |
| Minimum Screen Size Supported | 10" |
| Maximum Screen Size Supported | 38" |
| Maximum Adjustable Height | 12.60" |
| Features |
|
| Orientation | Landscape/Portrait |
| Height Adjustable | Yes |
| Minimum Tilt Angle | |
Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Black |
| Finishing |
|
| VESA Mount Compatible | Yes |
| Mounting Pattern |
|
| Product Material | Polished Aluminum |
| Form Factor |
|
| Weight (Approximate) | 11 lb |
Miscellaneous | |
|---|---|
| Package Contents |
|
| Application/Usage |
|
| Indoor/Outdoor | Indoor |
| Certifications & Standards | RoHS, TAA, VESA |
| Manufacturer Product Class | Stand |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
|---|---|
| Limited Warranty | 5 Year |
| -90° |
| Maximum Tilt Angle | 45° |
|---|
| Maximum Swivel Angle | 180° |
|---|
| Maximum Rotate Angle | 360° |
|---|
| Mount Function |
|
|---|
