STS680-2UCM3
Product Name
SmartMount® STS680-2UCM3 Universal Ultra-Slim Scissor Wall Mount Kit with (2) Component Plates
STS680 Universal AV Component Mount for Storing Media Players & AV Component Mount
STS680 Universal Video Conferencing Bar Mount

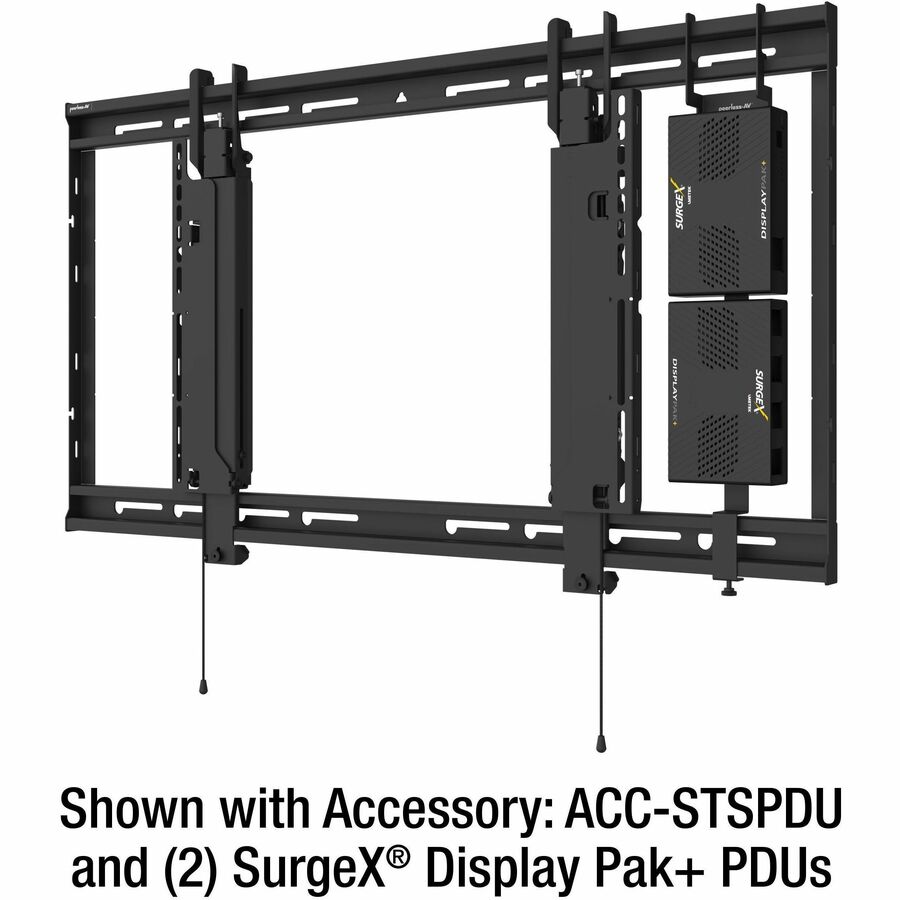

ST680 SurgeX DisplayPak+PDU Mounting Bracket

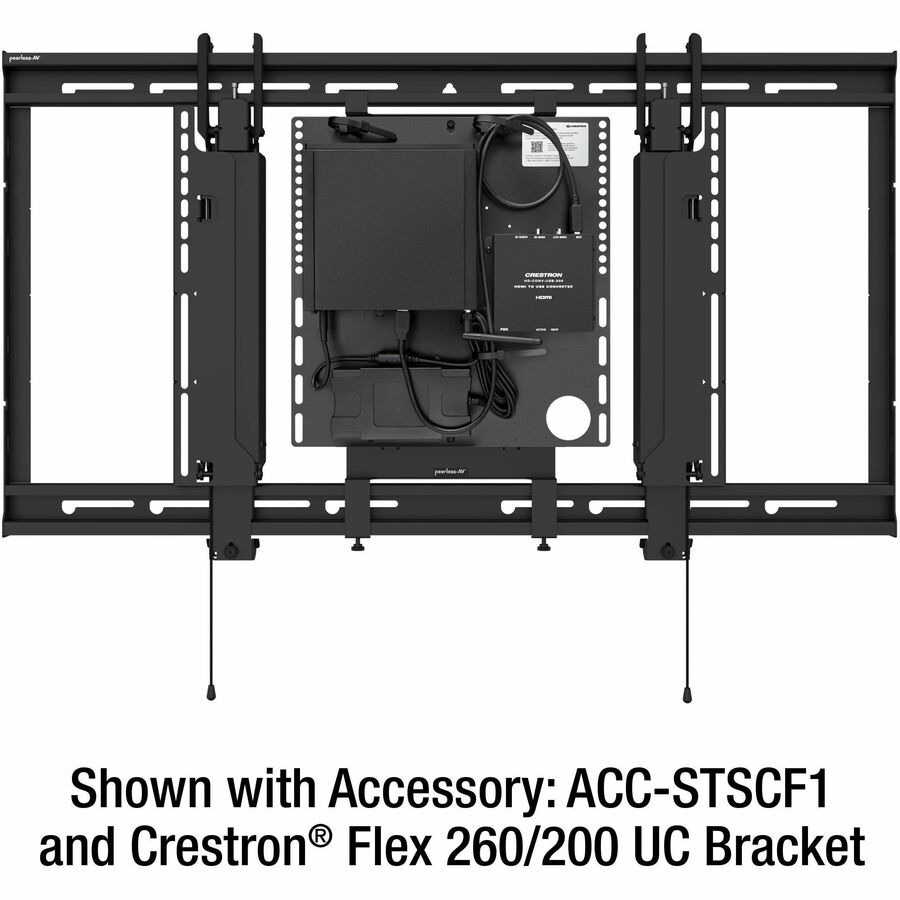

STS680 Creston Flex 260/200 UC Bracket Mount

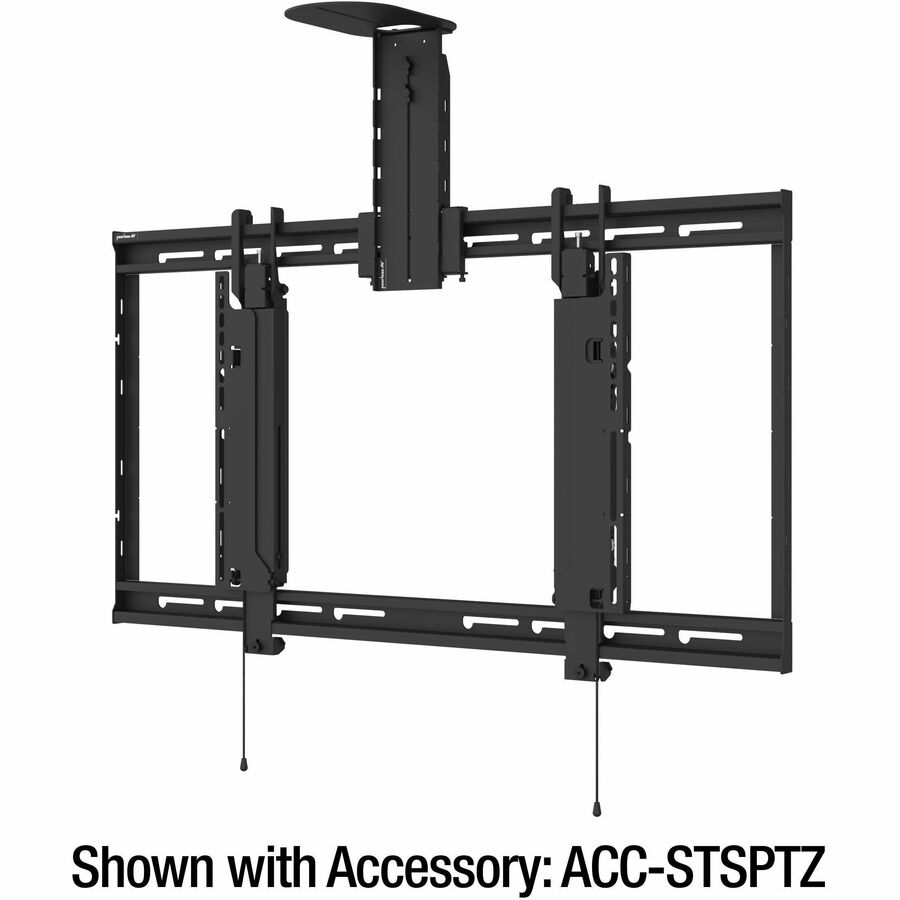

STS680 Universal PTZ Camera Mount

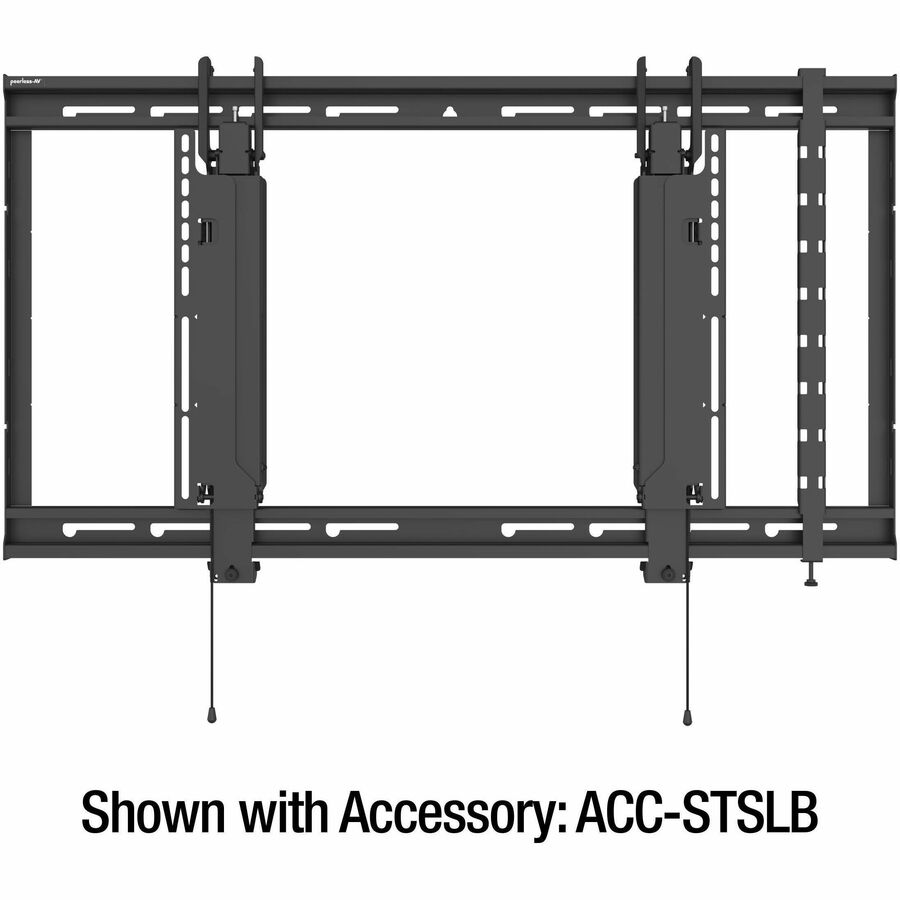

STS680 Cable Management Lacing Bar
Minimum Screen Size Supported
49"
-
49"
49"
-
49"
49"
Maximum Screen Size Supported
120"
-
115"
115"
-
115"
115"
Maximum Load Capacity
250 lb
10 lb
15 lb
15 lb
10 lb
15 lb
15 lb
Mounting Pattern
-
-
-
-
-
Features
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
Certifications:
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | STS680-2UCM3 |
| Manufacturer Website Address | http://www.peerless-av.com |
| Brand Name | SmartMount® |
| Product Model | STS680-2UCM3 |
| Product Name | SmartMount® Universal Ultra-Slim Scissor Wall Mount for 49" to 120"+ Displays |

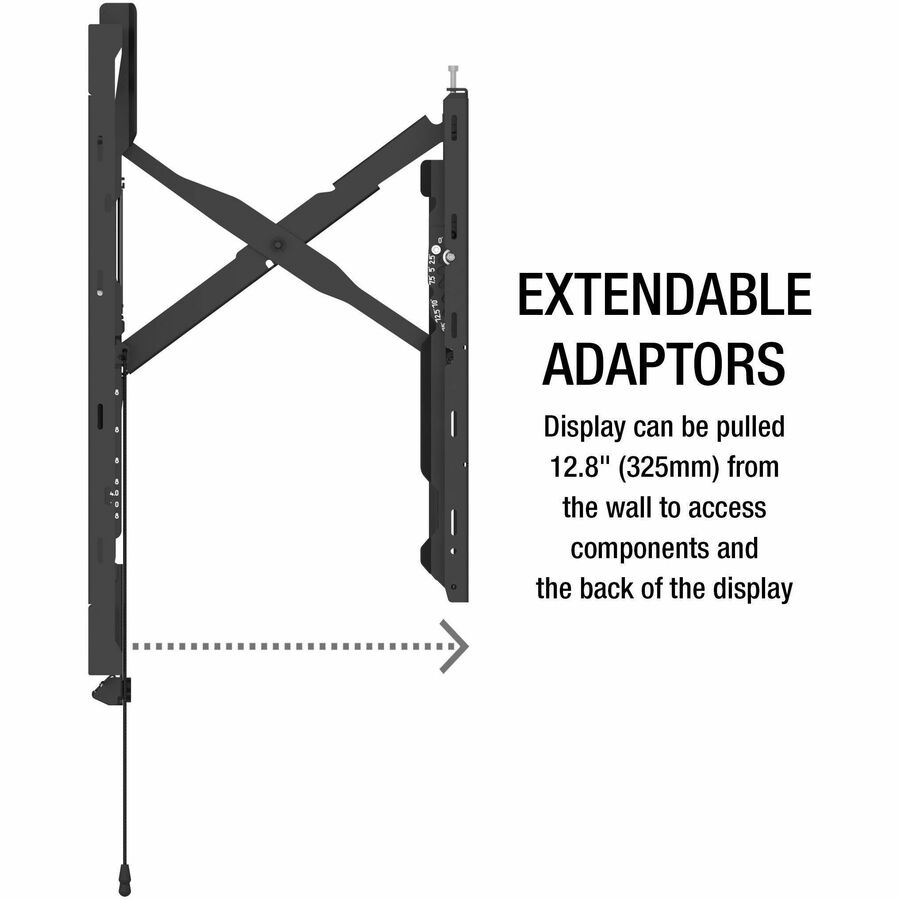

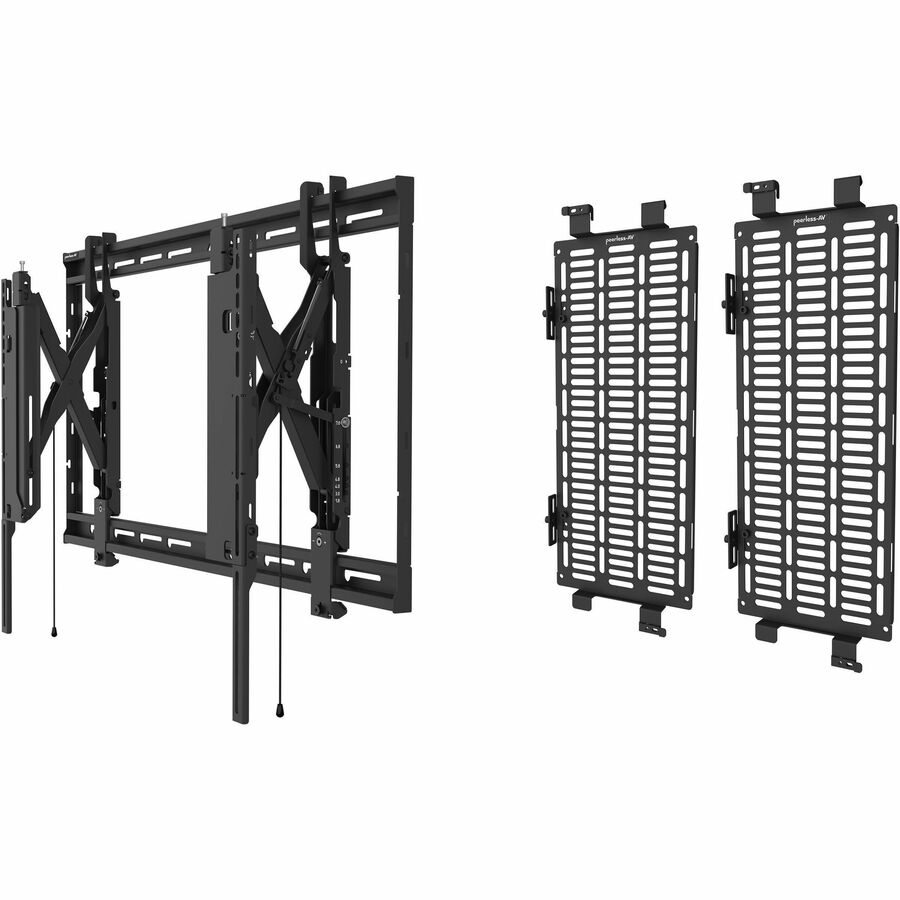

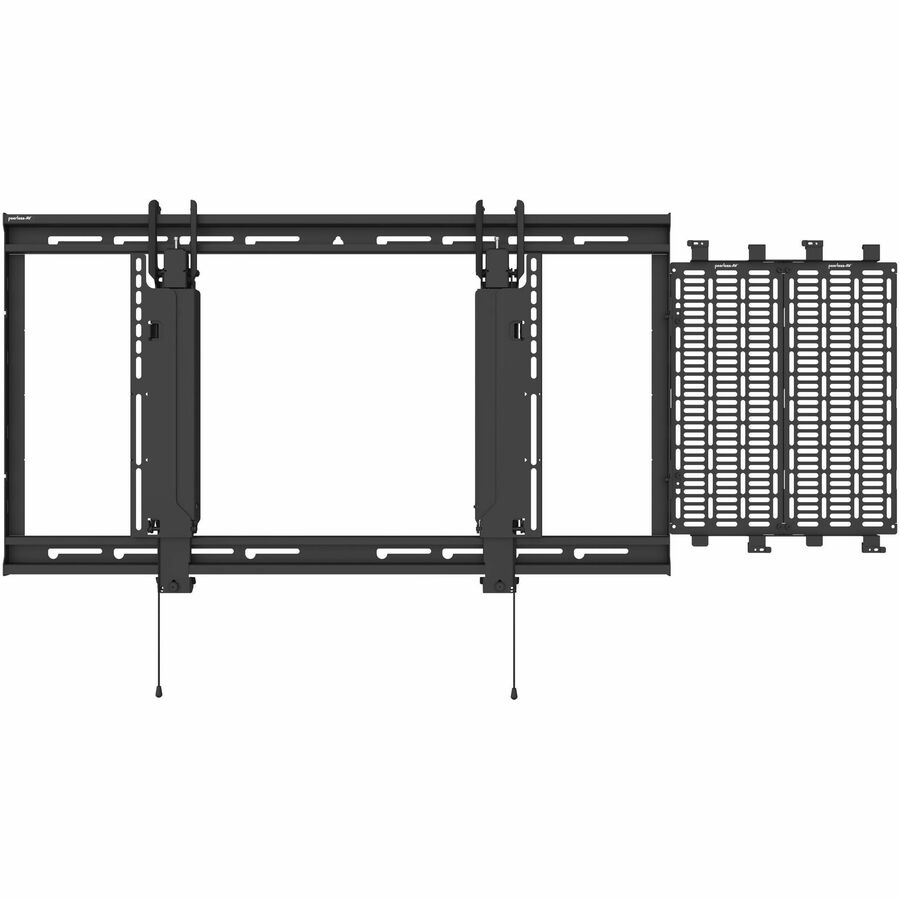

| Marketing Information | Peerless-AV's SmartMount® Universal Scissor Wall Mount (STS680-1UCM3) is the ideal solution for UC/VC applications and recessed wall installations. Designed for convenience, it provides easy access to components stored behind the display. The mount's extendable adaptors allow the display to be pulled up to 12.8" (325mm) from the wall and locked securely in place once installation or maintenance is complete. With its Hook-and-Hang™ feature, installation is quick and simple, while the open access design offers maximum wall space flexibility for outlets and in-wall boxes. Post-installation leveling and side-to-side adjustability ensure the display is perfectly aligned in any corporate, digital signage, or hospitality environment. This kitted solution includes (1) STS680 and (2) ACC-UCM3 component mounts. |
| Packaged Quantity | 1 Unit |
| Product Type | Wall Mount |
Product Information | |
|---|---|
| Device Supported |
|
| Maximum Load Capacity | 250 lb |
| Minimum Screen Size Supported | 49" |
| Maximum Screen Size Supported | 120" |

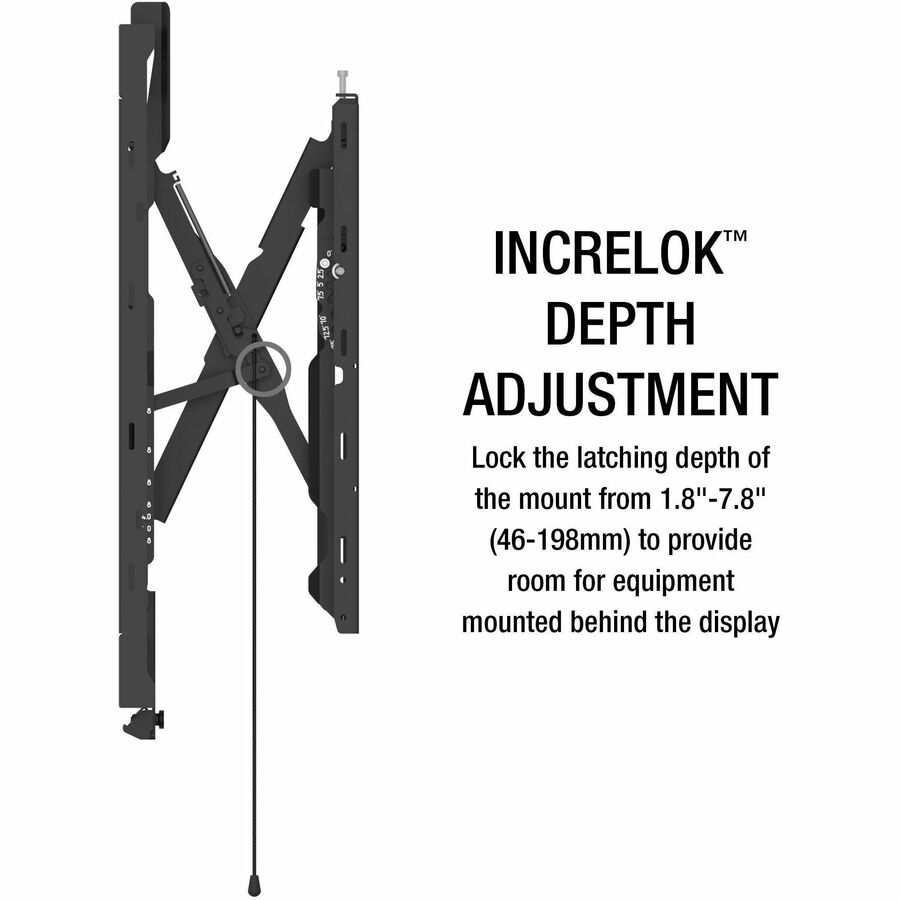

| Minimum Adjustable Depth | 1.80" |
| Maximum Adjustable Depth | 12.80" |
| Features |
|
| Mount Pattern | Universal |
| Minimum Tilt Angle | 0° |
Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Black |
| Finishing | Fused Epoxy |
| VESA Mount Compatible | Yes |
| Mounting Pattern |
|
| Form Factor | Wall Mountable |
| Height | 28.30" |
| Width | 40.20" |
| Depth | 12.80" |
Miscellaneous | |
|---|---|
| Package Contents |
|
| Application/Usage |
|
| Assembly Required | Yes |
| TAA Compliant | Yes |
| UL Listed | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
|---|---|
| Limited Warranty | Lifetime |

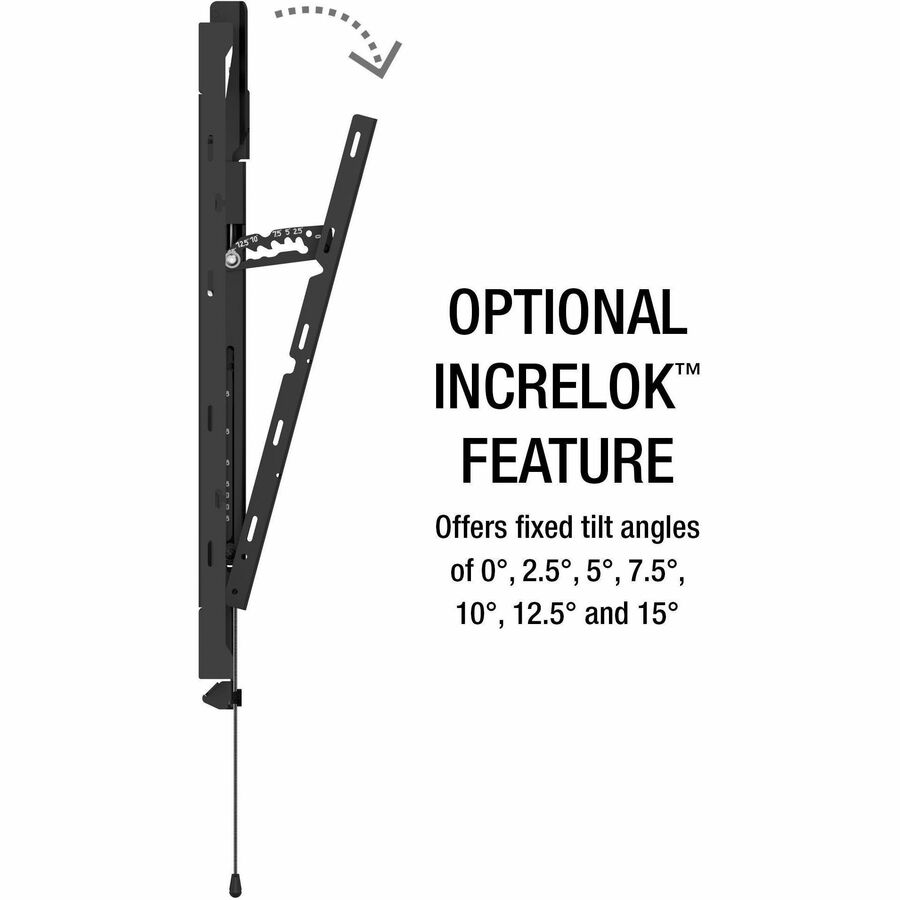

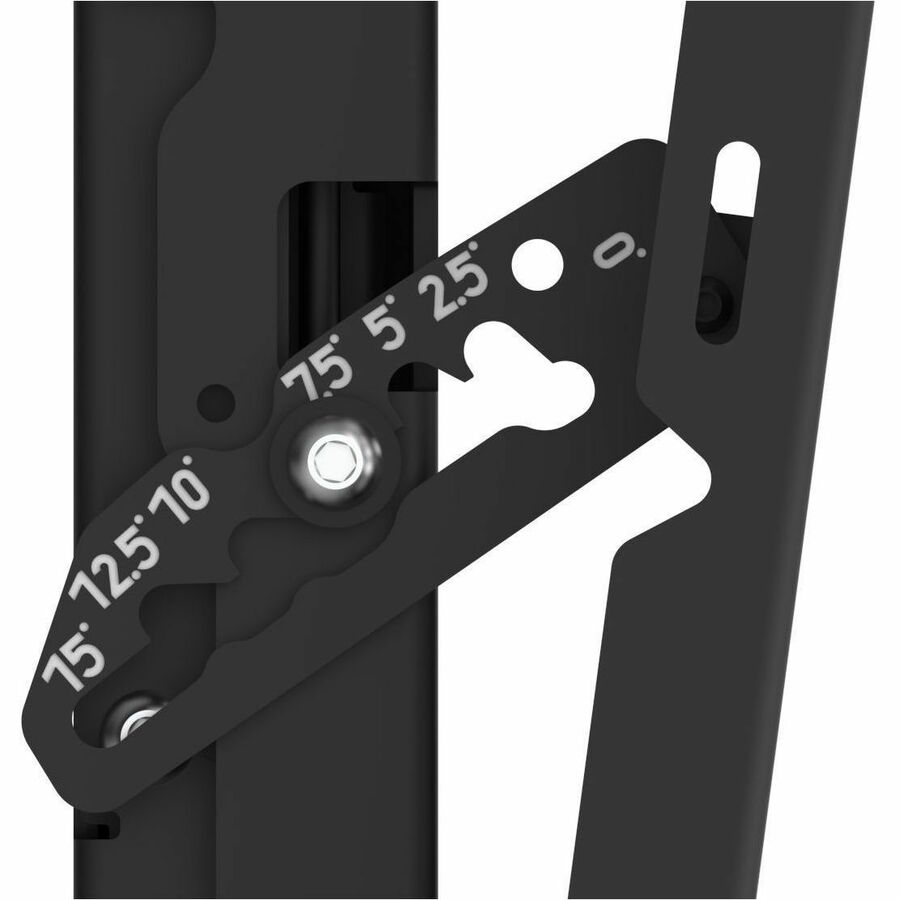

| Maximum Tilt Angle |
|---|
| 15° |
| Mount Function |
|
|---|
| Mount Surface | Wall |
|---|
| Durability |
|
|---|
| 30.10 lb |
