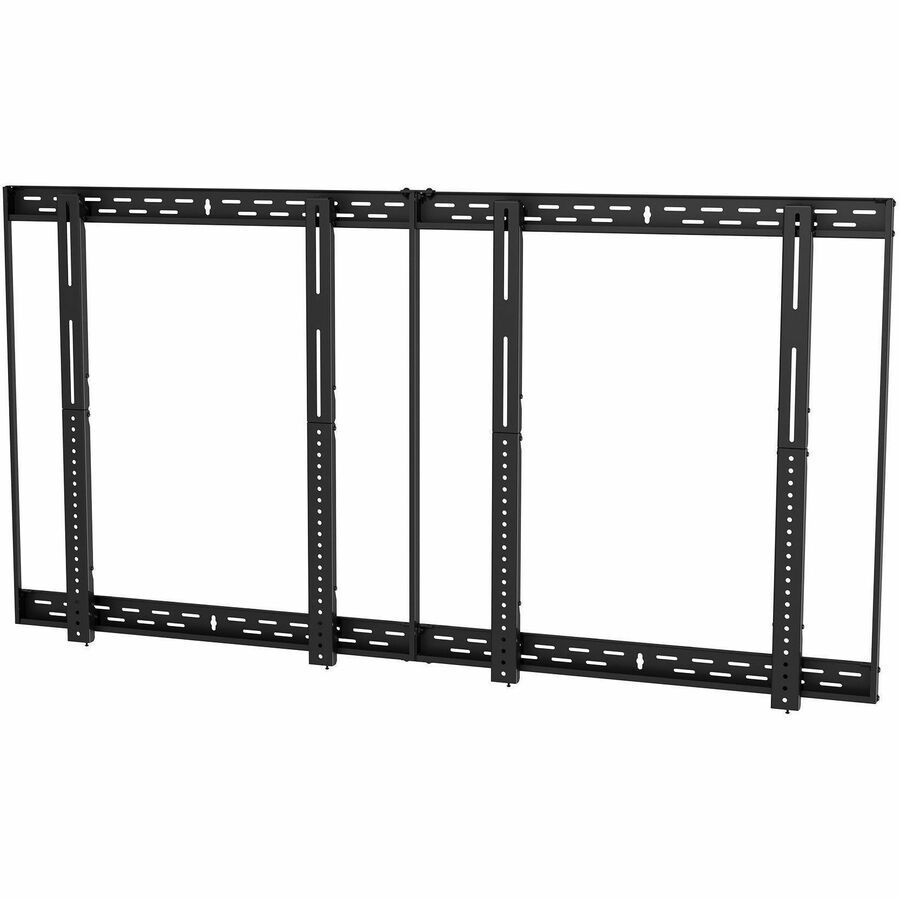

DS-VW655-2X2
Creating a 2x2 video wall is simple and cost effective with the Peerless-AV® DS-VW655-2X2 Video Wall Mounting Kit. Thanks to its thin design, ADA compliance is a non-issue with displays measuring 1.67" deep or less. The mount's single wall frame is quick to install, so you're ready to start hanging displays virtually right away. Equipped with built-in horizontal adjustment, mounting and aligning the displays is made easy. This 2x2 Video Wall Mounting Kit is the complete, time-saving solution you've been dreaming of.
Product Name
Peerless-AV® SmartMount® Flat Video Wall Mount 2x2 Kit for 46˘ to 55˘ Displays
Peerless-AV® SmartMount® Supreme Full Service Video Wall Mount for 46˘ to 60˘ Displays
Peerless-AV® SmartMount® Full-Service Video Wall Mount- Landscape for 40˘ to 65˘ Displays
Peerless-AV® SmartMount® Full Service Thin Video Wall Mount with Quick Release for 46'' to 65'' Displays
Peerless-AV® SmartMount® Portable Video Wall Cart 2x2, 3x2 or 3x3 Configuration for 46" to 55" Displays
Peerless-AV® SmartMount® Modular Video Wall Pedestal Mount 3x3 Configuration for 46" to 55" Displays
Peerless-AV® Multi-Display Ceiling Mount with Four Telescoping Arms for 37˘ to 75˘ Displays
Minimum Screen Size Supported
46"
46"
40"
46"
46"
-
37"
Maximum Screen Size Supported
55"
60"
65"
65"
55"
55"
75"
Maximum Load Capacity
600 lb
125 lb
125 lb
80 lb
900 lb
900 lb
500 lb
Mounting Pattern
600 x 400
700 x 400
400 x 400
730 x 405
Features
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
Certifications:
Creating a 2x2 video wall is simple and cost effective with the Peerless-AV® DS-VW655-2X2 Video Wall Mounting Kit. Thanks to its thin design, ADA compliance is a non-issue with displays measuring 1.67" deep or less. The mount's single wall frame is quick to install, so you're ready to start hanging displays virtually right away. Equipped with built-in horizontal adjustment, mounting and aligning the displays is made easy. This 2x2 Video Wall Mounting Kit is the complete, time-saving solution you've been dreaming of.
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | DS-VW655-2X2 |
| Manufacturer Website Address | http://www.peerless-av.com |
| Brand Name | SmartMount® |
| Product Series | DS-VW655-2X2 |
| Product Model | DS-VW655-2X2 |
| Product Name | Flat Video Wall Mount 2x2 Kit for 46" to 55" Displays |
| Marketing Information | Creating a 2x2 video wall is simple and cost effective with the Peerless-AV® DS-VW655-2X2 Video Wall Mounting Kit. Thanks to its thin design, ADA compliance is a non-issue with displays measuring 1.67" deep or less. The mount's single wall frame is quick to install, so you're ready to start hanging displays virtually right away. Equipped with built-in horizontal adjustment, mounting and aligning the displays is made easy. This 2x2 Video Wall Mounting Kit is the complete, time-saving solution you've been dreaming of. |
| Packaged Quantity | 1 Unit |
| Product Type | Wall Mount |
Product Information | |
|---|---|
| Device Supported |
|
| Number of Displays Supported | 4 |
| Maximum Load Capacity | 600 lb |
| Minimum Screen Size Supported | 46" |
| Maximum Screen Size Supported | 55" |
| Features |
|
| Mount Pattern | Universal |
| Mount Profile | Flat |
| Mount Function | Video Wall |
| Mount Surface | |
Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Black |
| Finishing | Powder Coated |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 600 x 400 |
| Minimum Mounting Pattern | 100 x 100 |
| Product Material | Steel |
| Form Factor | Wall Mountable |
| Height | 41.11" |
| Width | 78.38" |
Miscellaneous | |
|---|---|
| Package Contents |
|
| Certifications & Standards | RoHS, TAA |
| Manufacturer Product Class | Wall, Static |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
|---|---|
| Limited Warranty | 5 Year |
| Durability |
|
|---|
| Depth |
|---|
| 2.33" |
| Weight (Approximate) | 61.10 lb |
|---|
