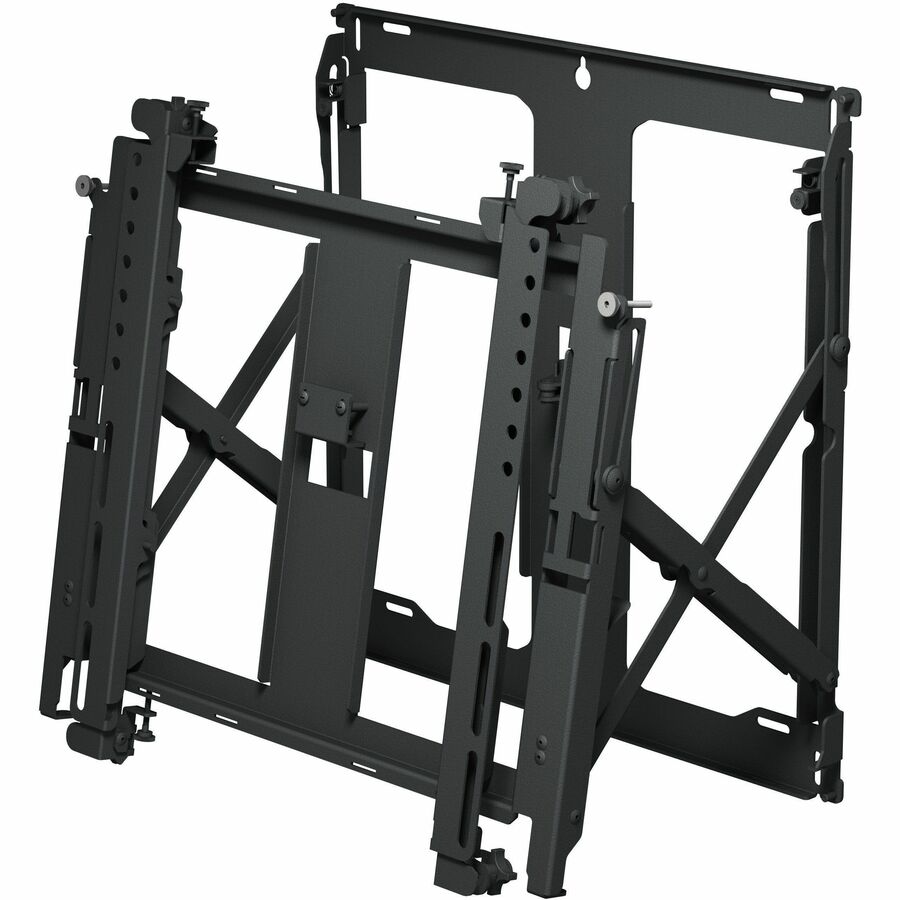

DS-VW755S
The SmartMount® Full Service Thin Video Wall Mount with Quick Release offers an easy to install solution for both landscape and portrait applications. When overall video wall depth is a concern, the DS-VW755S provides ADA compliance when mounting displays measuring 2" deep or less. Designed for quick service access in recessed video wall applications, the DS-VW755S provides versatility for integrators. Tool-less micro-adjustment at eight points allows the mount to overcome uneven walls, creating a seamless video wall display.
Product Name
Peerless-AV® SmartMount® Full Service Thin Video Wall Mount with Quick Release for 46'' to 65'' Displays
Peerless-AV® SmartMount® Supreme Full Service Video Wall Mount for 46" to 60" Displays
Peerless-AV® SmartMount® Full-Service Video Wall Mount- Landscape for 40" to 65" Displays
Peerless-AV® SmartMount® Flat Video Wall Mount 2x2 Kit for 46" to 55" Displays
Peerless-AV® SmartMount® Portable Video Wall Cart 2x2, 3x2 or 3x3 Configuration for 46" to 55" Displays
Peerless-AV® SmartMount® Modular Video Wall Pedestal Mount 3x3 Configuration for 46" to 55" Displays
Peerless-AV® Multi-Display Ceiling Mount with Four Telescoping Arms for 37" to 75" Displays
Minimum Screen Size Supported
46"
46"
40"
46"
46"
-
37"
Maximum Screen Size Supported
65"
60"
65"
55"
55"
55"
75"
Maximum Load Capacity
80 lb
125 lb
125 lb
600 lb
900 lb
900 lb
500 lb
Mounting Pattern
600 x 400
730 x 405
Features
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
Certifications:
The SmartMount® Full Service Thin Video Wall Mount with Quick Release offers an easy to install solution for both landscape and portrait applications. When overall video wall depth is a concern, the DS-VW755S provides ADA compliance when mounting displays measuring 2" deep or less. Designed for quick service access in recessed video wall applications, the DS-VW755S provides versatility for integrators. Tool-less micro-adjustment at eight points allows the mount to overcome uneven walls, creating a seamless video wall display.
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | DS-VW755S |
| Manufacturer Website Address | http://www.peerless-av.com |
| Brand Name | SmartMount® |
| Product Series | DS-VW755S |
| Product Model | DS-VW755S |
| Product Name | Full Service Thin Video Wall Mount with Quick Release for 46'' to 65'' Displays |
| Marketing Information | The SmartMount® Full Service Thin Video Wall Mount with Quick Release offers an easy to install solution for both landscape and portrait applications. When overall video wall depth is a concern, the DS-VW755S provides ADA compliance when mounting displays measuring 2" deep or less. Designed for quick service access in recessed video wall applications, the DS-VW755S provides versatility for integrators. Tool-less micro-adjustment at eight points allows the mount to overcome uneven walls, creating a seamless video wall display. |
| Packaged Quantity | 1 Unit |
| Product Type | Wall Mount |
Product Information | |
|---|---|
| Device Supported |
|
| Maximum Load Capacity | 80 lb |
| Minimum Screen Size Supported | 46" |
| Maximum Screen Size Supported | 65" |
| Minimum Adjustable Depth | 1.80" |
| Maximum Adjustable Depth | 2.60" |
| Features |
|
| Orientation | Landscape/Portrait |
| Mount Profile | Recessed |
Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Black |
| Finishing | Textured |
| VESA Mount Compatible | Yes |
| Mounting Pattern |
|
| Form Factor | Wall Mountable |
| Height | 20.50" |
| Width | 21.44" |
| Depth | 2.63" |
| Weight (Approximate) | 20.90 lb |
Miscellaneous | |
|---|---|
| Package Contents |
|
| Certifications & Standards | TAA, VESA |
| Manufacturer Product Class | Wall, Ultra-Thin |
| Assembly Required | Yes |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
|---|---|
| Limited Warranty | 5 Year |
| Video Wall |
| Mount Surface | Wall |
|---|
