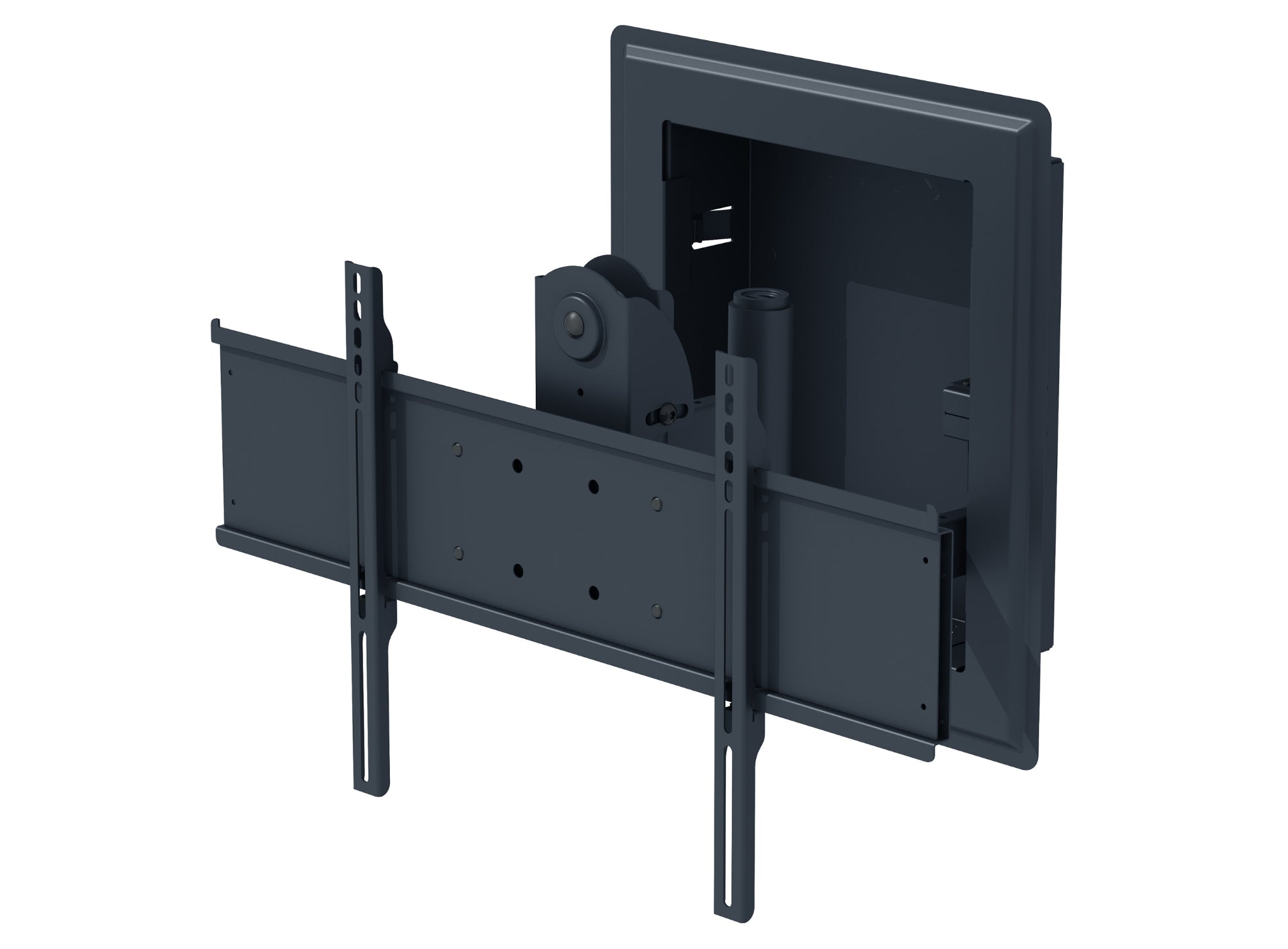

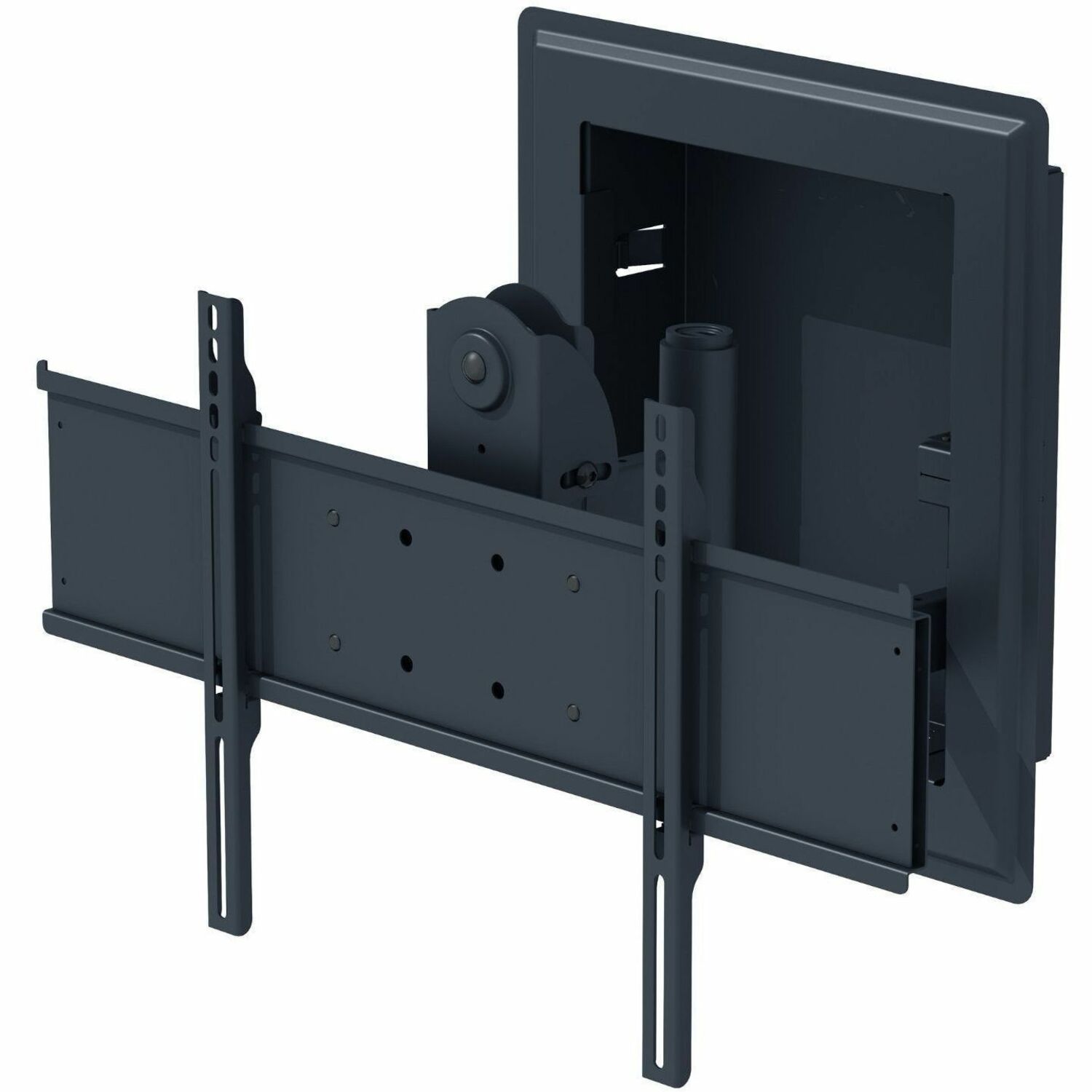

Maximize your living space by installing the display as close to the wall as possible with Peerless-AV's universal In-Wall Mounting solution for up to 71" displays. Installation is quick and easy thanks to the mount's stud-locating tabs that fit the in-wall box snugly between 16" wood stud centers. View the display in its virtually no-profile home position, or extend the arm over 19" to watch it anywhere else within the room.
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | IM760PU |
| Manufacturer Website Address | http://www.peerless-av.com |
| Brand Name | Peerless-AV® |
| Product Series | IM760PU |
| Product Model | IM760PU |
| Product Name | In-Wall Mount for 32" to 71" Displays |
| Marketing Information | Maximize your living space by installing the display as close to the wall as possible with Peerless-AV's universal In-Wall Mounting solution for up to 71" displays. Installation is quick and easy thanks to the mount's stud-locating tabs that fit the in-wall box snugly between 16" wood stud centers. View the display in its virtually no-profile home position, or extend the arm over 19" to watch it anywhere else within the room. |
| Packaged Quantity | 1 |
| Product Type | Wall Mount |
Product Information | |
|---|---|
| Device Supported |
|
| Maximum Load Capacity | 200 lb |
| Minimum Screen Size Supported | 32" |
| Maximum Screen Size Supported | 71" |
| Minimum Adjustable Depth | 5.75" |
| Maximum Adjustable Depth | 22.25" |
| Features |
|
| Mount Pattern | Universal |
| Minimum Swivel Angle | -45° |
| Maximum Swivel Angle | 45° |
| Mount Function | Cable Management |
| Mount Surface | Wall |
| Durability | Scratch Resistant |
Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Black |
| Finishing | Fused Epoxy |
| VESA Mount Compatible | Yes |
| Mounting Pattern |
|
| Form Factor | Wall Mountable |
| Height | 21.86" |
| Width | 30.75" |
| Depth | 22.25" |
| Weight (Approximate) | 45.40 lb |
Miscellaneous | |
|---|---|
| Package Contents |
|
| Application/Usage | Wood Stud |
| Indoor/Outdoor | Indoor |
| Certifications & Standards | RoHS, TAA, VESA |
| Manufacturer Product Class | In Wall Mount |
| Assembly Required | Yes |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
|---|---|
| Limited Warranty | 5 Year |
IM760PU
Maximize your living space by installing the display as close to the wall as possible with Peerless-AV's universal In-Wall Mounting solution for up to 71" displays. Installation is quick and easy thanks to the mount's stud-locating tabs that fit the in-wall box snugly between 16" wood stud centers. View the display in its virtually no-profile home position, or extend the arm over 19" to watch it anywhere else within the room.
Product Name
Peerless-AV® In-Wall Mount for 32" to 71" Displays
Peerless-AV® DesignerSeries™ Articulating Mount with In-Wall Box for 37" to 65" Ultra-Thin Displays
Peerless-AV® DesignerSeries™ Articulating Mount with In-Wall Box for 42" to 90" Ultra-Thin Displays
Minimum Screen Size Supported
32"
37"
42"
Maximum Screen Size Supported
71"
65"
90"
Maximum Load Capacity
200 lb
80 lb
150 lb
Mounting Pattern
400 x 400
800 x 400
Features
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
Certifications:
