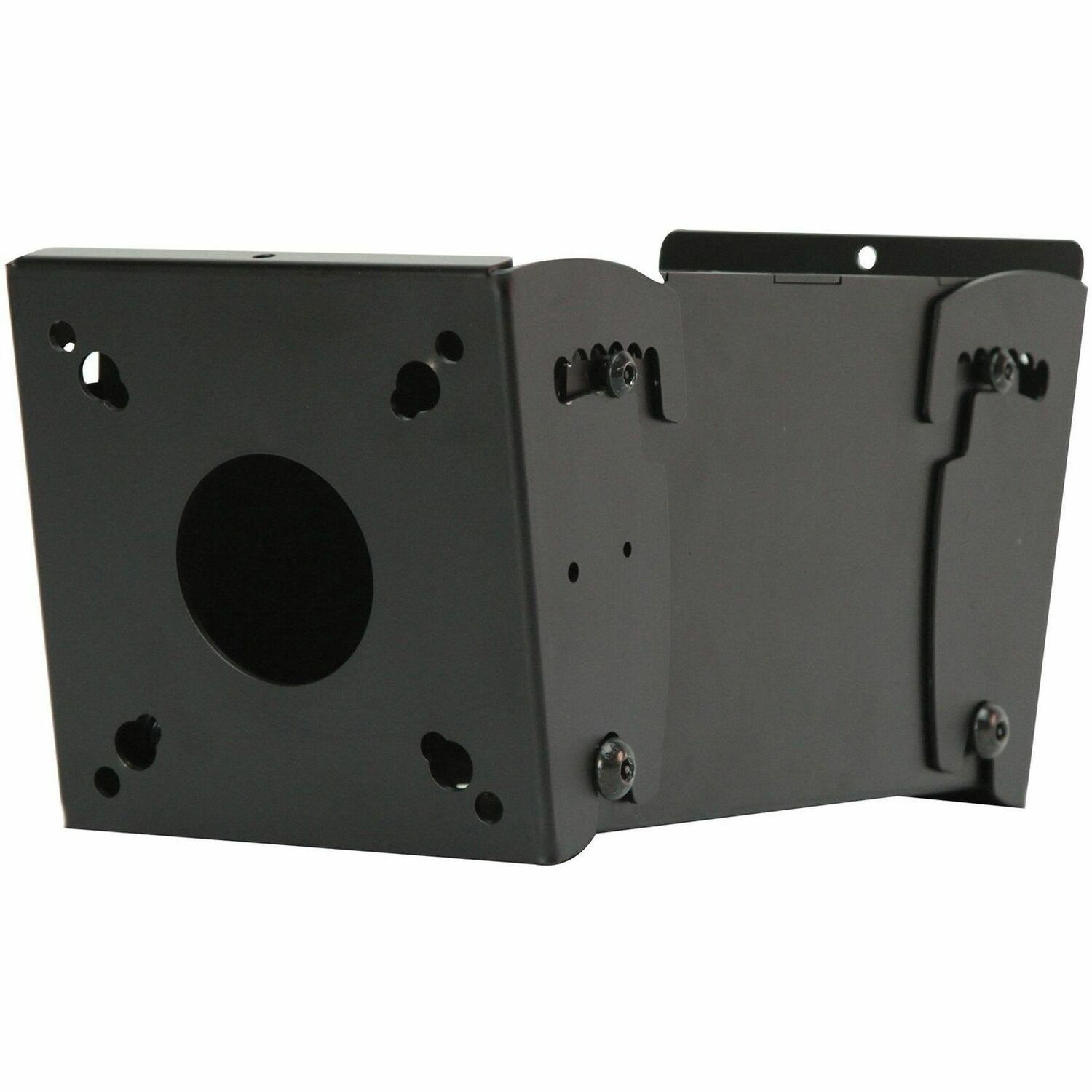

The SmartMount® PLB-1 Back-to-Back Ceiling Mount works with all 1.5" NPT extension pipes for versatility, support, and connection. The 1.5" NPT threaded pipes make it simple to customize each mount to your specific application. The Back-to-Back Ceiling Mount can be used in conjunction with Peerless-AV's AEC or EXT columns, along with the PLP adaptor plates for custom ceiling mount applications. Each side of the tilt box provides -5° to 2° of forward tilt, and 36° of swivel, making it possible to find the perfect viewing angle. Not compatible with AEC006009 , EXT002 and EXT006 extension columns.
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | PLB-1 |
| Manufacturer Website Address | http://www.peerless-av.com |
| Brand Name | SmartMount® |
| Product Series | PLB-1 |
| Product Model | PLB-1 |
| Product Name | Back-to-Back Ceiling Mount Tilt Box for 2 Displays up to 90" |
| Marketing Information | The SmartMount® PLB-1 Back-to-Back Ceiling Mount works with all 1.5" NPT extension pipes for versatility, support, and connection. The 1.5" NPT threaded pipes make it simple to customize each mount to your specific application. The Back-to-Back Ceiling Mount can be used in conjunction with Peerless-AV's AEC or EXT columns, along with the PLP adaptor plates for custom ceiling mount applications. Each side of the tilt box provides -5° to 2° of forward tilt, and 36° of swivel, making it possible to find the perfect viewing angle. Not compatible with AEC006009 , EXT002 and EXT006 extension columns. |
| Packaged Quantity | 1 Unit |
| Product Type | Ceiling Mount |
Product Information | |
|---|---|
| Device Supported | Flat Panel Display |
| Number of Displays Supported | 2 |
| Minimum Load Capacity | 150 lb |
| Maximum Load Capacity | 300 lb |
| Minimum Screen Size Supported | 30" |
| Maximum Screen Size Supported | 90" |
| Features |
|
| Orientation | Landscape/Portrait |
| Minimum Tilt Angle | -5° |
| Maximum Tilt Angle | 20° |
| Minimum Swivel Angle | 36° |
| Maximum Swivel Angle | 360° |
| Mount Function |
|
| Mount Surface | Ceiling |
Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Black |
| Finishing | Powder Coated |
| VESA Mount Compatible | Yes |
| Mounting Pattern |
|
| Product Material | Steel |
| Form Factor | Ceiling Mountable |
| Height | 5.22" |
| Width | 5.60" |
| Depth | 8.82" |
| Weight (Approximate) | 4.50 lb |
Miscellaneous | |
|---|---|
| Package Contents |
|
| Application/Usage | Pipe |
| Indoor/Outdoor | Indoor |
| Certifications & Standards | RoHS, TAA, VESA |
| Manufacturer Product Class | Ceiling Mount |
| Assembly Required | Yes |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
|---|---|
| Limited Warranty | 5 Year |
PLB-1
The SmartMount® PLB-1 Back-to-Back Ceiling Mount works with all 1.5" NPT extension pipes for versatility, support, and connection. The 1.5" NPT threaded pipes make it simple to customize each mount to your specific application. The Back-to-Back Ceiling Mount can be used in conjunction with Peerless-AV's AEC or EXT columns, along with the PLP adaptor plates for custom ceiling mount applications. Each side of the tilt box provides -5° to 2° of forward tilt, and 36° of swivel, making it possible to find the perfect viewing angle. Not compatible with AEC006009 , EXT002 and EXT006 extension columns.
Product Name
Peerless-AV® SmartMount® Back-to-Back Ceiling Mount Tilt Box for 2 Displays up to 90"
Peerless-AV® SmartMount® Ceiling Mounts with Ceiling Plate & Tilt Box for up to 90'' Displays
Peerless-AV® SmartMount® Ceiling Mount Tilt Boxes for up to 90" Displays
Peerless-AV® SmartMount® Universal Ceiling Mount for 32'' to 90'' Displays
Peerless-AV® SmartMount® Universal Ceiling Mount for 32" to 90" Displays
Peerless-AV® SmartMount® Ceiling Mount with 1.5" NPS Coupler and Universal I-Shaped Adaptor for 32" to 90" Displays
Peerless-AV® SmartMount® Ceiling Mount with 1.5" NPS Coupler for up to 90" Displays
Peerless-AV® SmartMount® Ceiling Mount with I-Shaped Adaptor and Tilt Box for 32" to 90" Displays
Peerless-AV® Ceiling Mount Tilt Boxes for up to 90" Displays
Minimum Screen Size Supported
30"
10"
10"
32"
32"
10"
32"
32"
-
Maximum Screen Size Supported
90"
90"
90"
90"
90"
90"
90"
90"
90"
Maximum Load Capacity
300 lb
150 lb
150 lb
150 lb
150 lb
150 lb
150 lb
150 lb
150 lb
Mounting Pattern
600 x 400
600 x 400
600 x 400
Features
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
