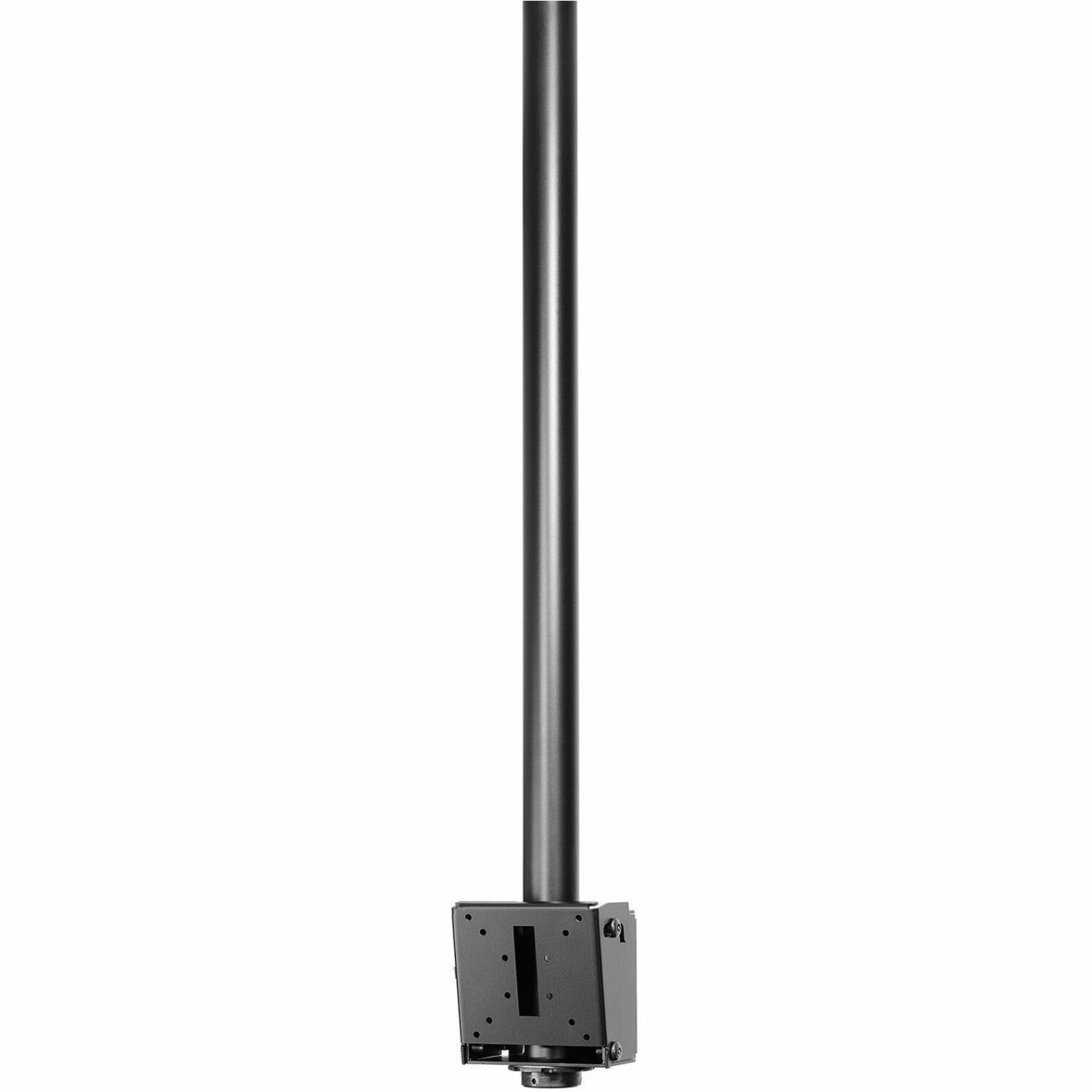

The SmartMount® PLCM-1 Ceiling Mounts utilize 1.5" NPT extension pipes for versatility, support, and connection. The 1.5" NPT threaded pipes make it simple to customize each mount to your specific application. The PLCM-1 kit combines the PLCM-2 tilt box and an EXT13 fixed length 1.5" NPT column, to deliver a drop of 36" , -5°/+2° of adjustable tilt and 36° of swivel. When combined with a Peerless-AV® ceiling plate, and a universal or fixed display adaptor plate, it creates the perfect combination for flat panel ceiling mounting in sports facilities, airports, lobbies, or retail environments.
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | PLCM-1 |
| Manufacturer Website Address | http://www.peerless-av.com |
| Brand Name | SmartMount® |
| Product Series | PLCM-1 |
| Product Model | PLMC-1 |
| Product Name | Ceiling Mounts 36.0" Extension Column with Tilt Box for up to 90" Displays |
| Marketing Information | The SmartMount® PLCM-1 Ceiling Mounts utilize 1.5" NPT extension pipes for versatility, support, and connection. The 1.5" NPT threaded pipes make it simple to customize each mount to your specific application. The PLCM-1 kit combines the PLCM-2 tilt box and an EXT13 fixed length 1.5" NPT column, to deliver a drop of 36" , -5°/+2° of adjustable tilt and 36° of swivel. When combined with a Peerless-AV® ceiling plate, and a universal or fixed display adaptor plate, it creates the perfect combination for flat panel ceiling mounting in sports facilities, airports, lobbies, or retail environments. |
| Packaged Quantity | 1 Unit |
| Product Type | Ceiling Mount |
Product Information | |
|---|---|
| Device Supported |
|
| Maximum Load Capacity | 150 lb |
| Minimum Screen Size Supported | 10" |
| Maximum Screen Size Supported | 90" |
| Features |
|
| Orientation | Landscape/Portrait |
| Mount Pattern | Universal |
| Mount Profile | Fixed |
| Minimum Tilt Angle | -5° |
| Maximum Tilt Angle | 20° |
| Maximum Swivel Angle | 360° |
| Mount Function |
|
Aluminum Column
Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Black |
| Finishing | Powder Coated |
| VESA Mount Compatible | Yes |
| Mounting Pattern |
|
| Product Material | Steel |
| Material Details | Aluminum Column |
| Form Factor | Ceiling Mountable |
| Height | 37" |
| Width | 5.60" |
| Depth | 3.54" |
| Weight (Approximate) | 5.30 lb |
Miscellaneous | |
|---|---|
| Package Contents |
|
| Application/Usage |
|
| Certifications & Standards | RoHS, TAA, VESA, UL |
| Manufacturer Product Class | Ceiling Mount |
| Assembly Required | Yes |
| TAA Compliant | Yes |
| UL Listed | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
|---|---|
| Limited Warranty | 5 Year |
PLCM-1
The SmartMount® PLCM-1 Ceiling Mounts utilize 1.5" NPT extension pipes for versatility, support, and connection. The 1.5" NPT threaded pipes make it simple to customize each mount to your specific application. The PLCM-1 kit combines the PLCM-2 tilt box and an EXT13 fixed length 1.5" NPT column, to deliver a drop of 36" , -5°/+2° of adjustable tilt and 36° of swivel. When combined with a Peerless-AV® ceiling plate, and a universal or fixed display adaptor plate, it creates the perfect combination for flat panel ceiling mounting in sports facilities, airports, lobbies, or retail environments.
Product Name
SmartMount® Ceiling Mounts 36.0" Extension Column with Tilt Box for up to 90" Displays
Peerless-AV® SmartMount® Ceiling Mounts with Ceiling Plate & Tilt Box for up to 90'' Displays
Peerless-AV® SmartMount® Ceiling Mount Tilt Boxes for up to 90" Displays
Peerless-AV® SmartMount® Universal Ceiling Mount for 32'' to 90'' Displays
Peerless-AV® SmartMount® Universal Ceiling Mount for 32" to 90" Displays
Peerless-AV® SmartMount® Ceiling Mount with I-Shaped Adaptor and Tilt Box for 32" to 90" Displays
Peerless-AV® Ceiling Mount Tilt Boxes for up to 90" Displays
Minimum Screen Size Supported
10"
10"
10"
32"
32"
32"
-
Maximum Screen Size Supported
90"
90"
90"
90"
90"
90"
90"
Maximum Load Capacity
150 lb
150 lb
150 lb
150 lb
150 lb
150 lb
150 lb
Mounting Pattern
600 x 400
600 x 400
600 x 400
Features
| SKU |
|---|
| PLCM-1 |
| PLCM-1CP |
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
