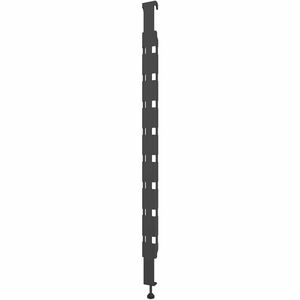

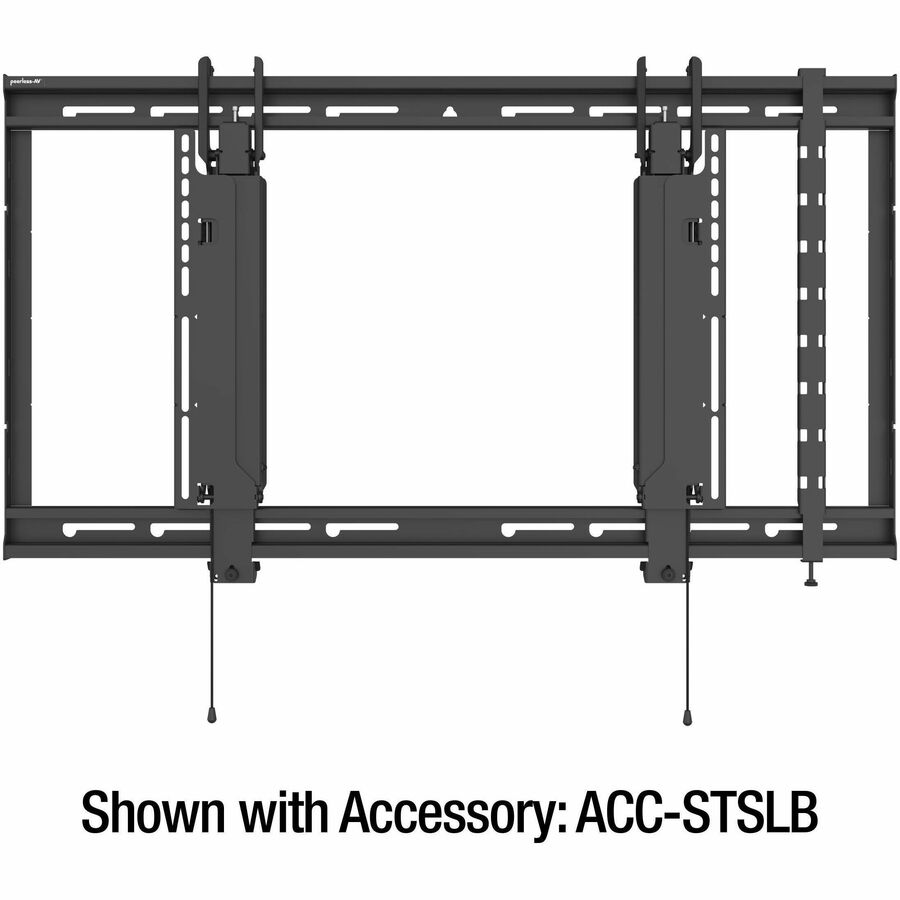

SmartMount® Universal Ultra-Slim Scissor Wall Mount with (1) Component Mount for 49-120"+ Displays

STS680-1UCM3

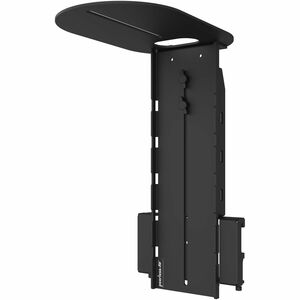

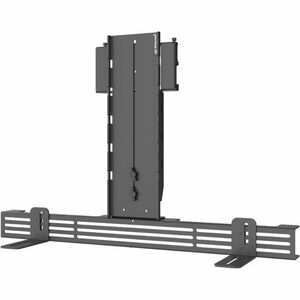

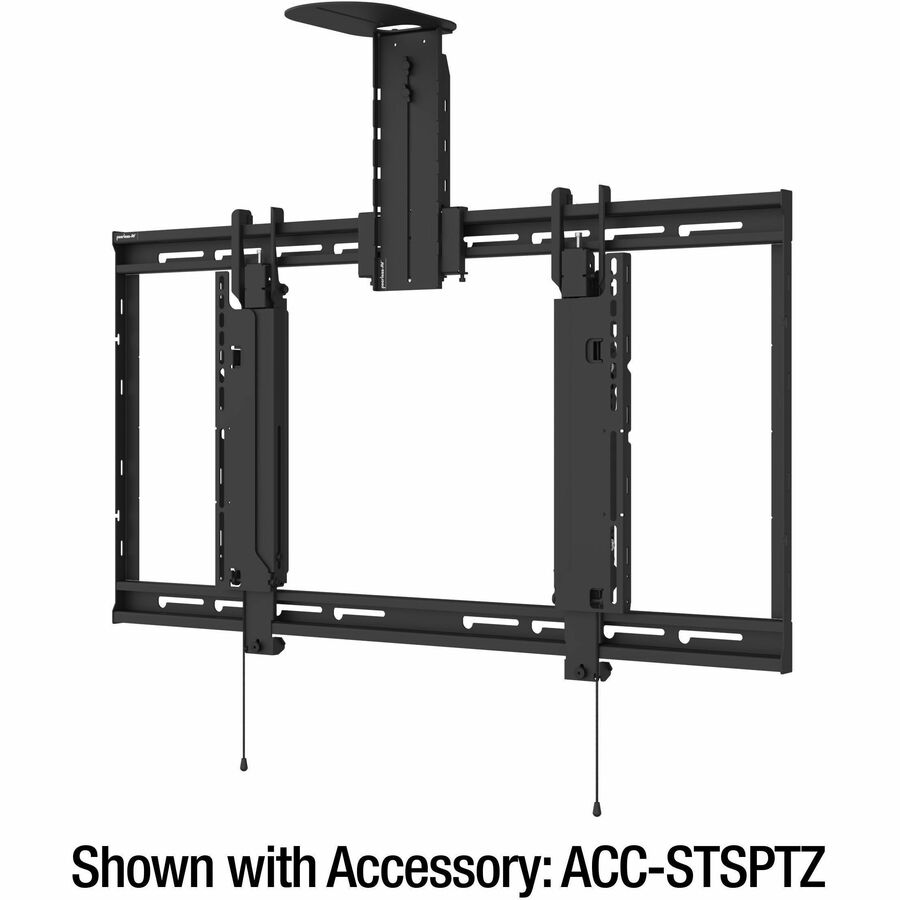

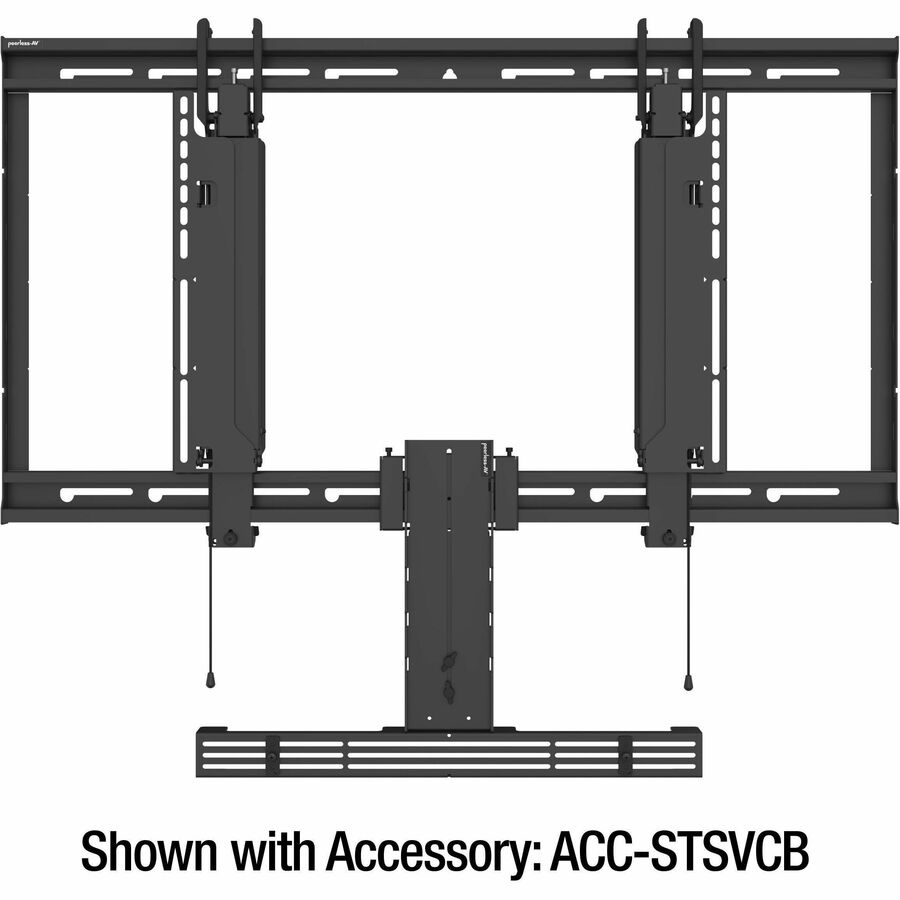

Peerless-AV's SmartMount® Universal Scissor Wall Mount (STS680-1UCM3) is the ideal solution for UC/VC applications and recessed wall installations. Designed for convenience, it provides easy access to components stored behind the display. The mount's extendable adaptors allow the display to be pulled up to 12.8" (325mm) from the wall and locked securely in place once installation or maintenance is complete. With its Hook-and-Hang™ feature, installation is quick and simple, while the open access design offers maximum wall space flexibility for outlets and in-wall boxes. Post-installation leveling and side-to-side adjustability ensure the display is perfectly aligned in any corporate, digital signage, or hospitality environment. This kitted solution includes (1) STS680 and (1) ACC-UCM3 component mount.

Product Features

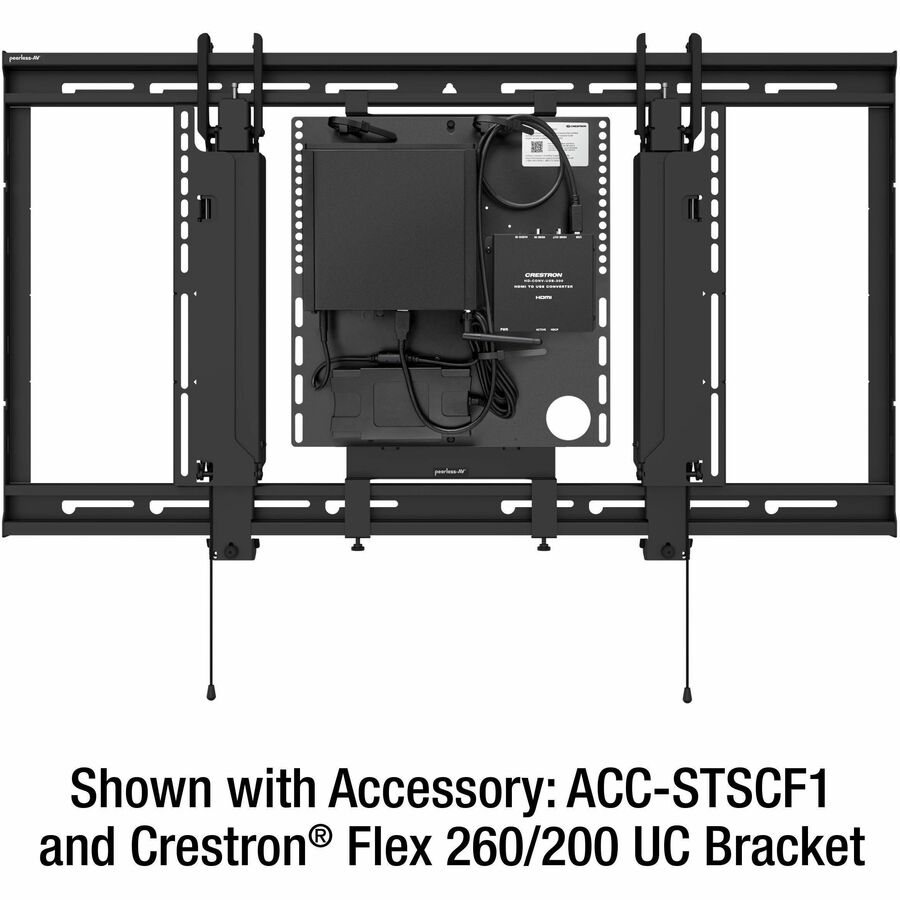

Compatible with the Crestron® Flex UC Brackets with ACC-STSCF1 accessory

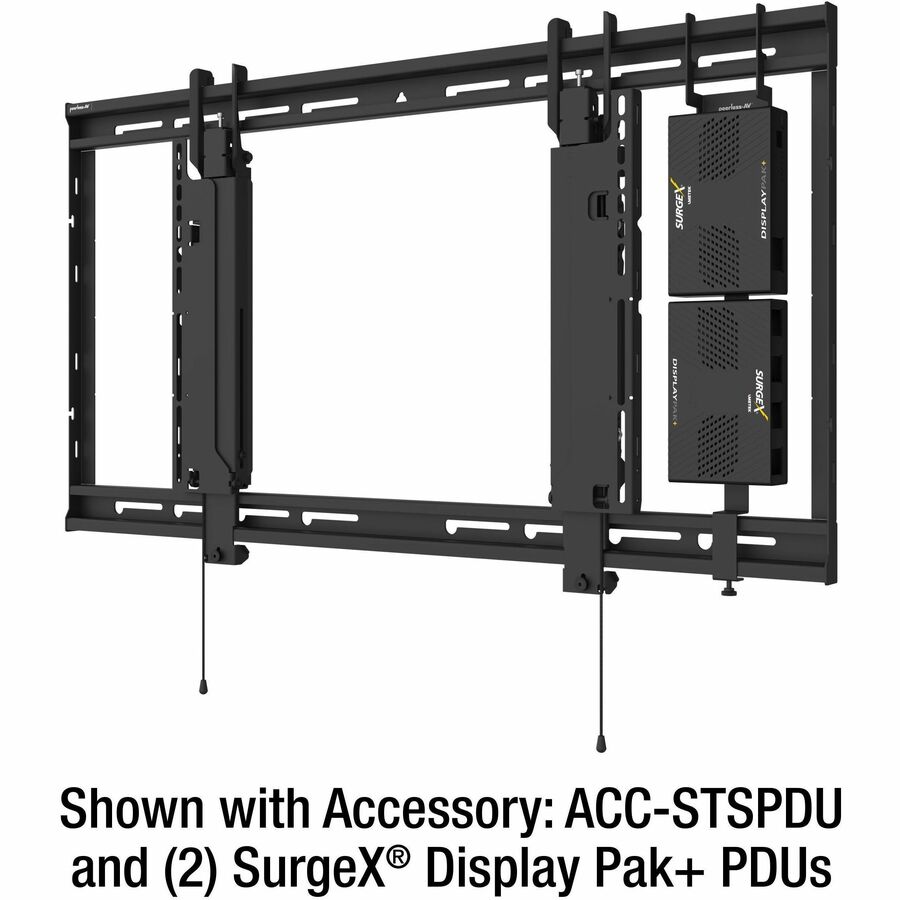

Compatible with SurgeX® DisplayPak+ with ACC-STSPDU accessory
Hook-and-Hang™ features allows the display to be easily installed by a single person

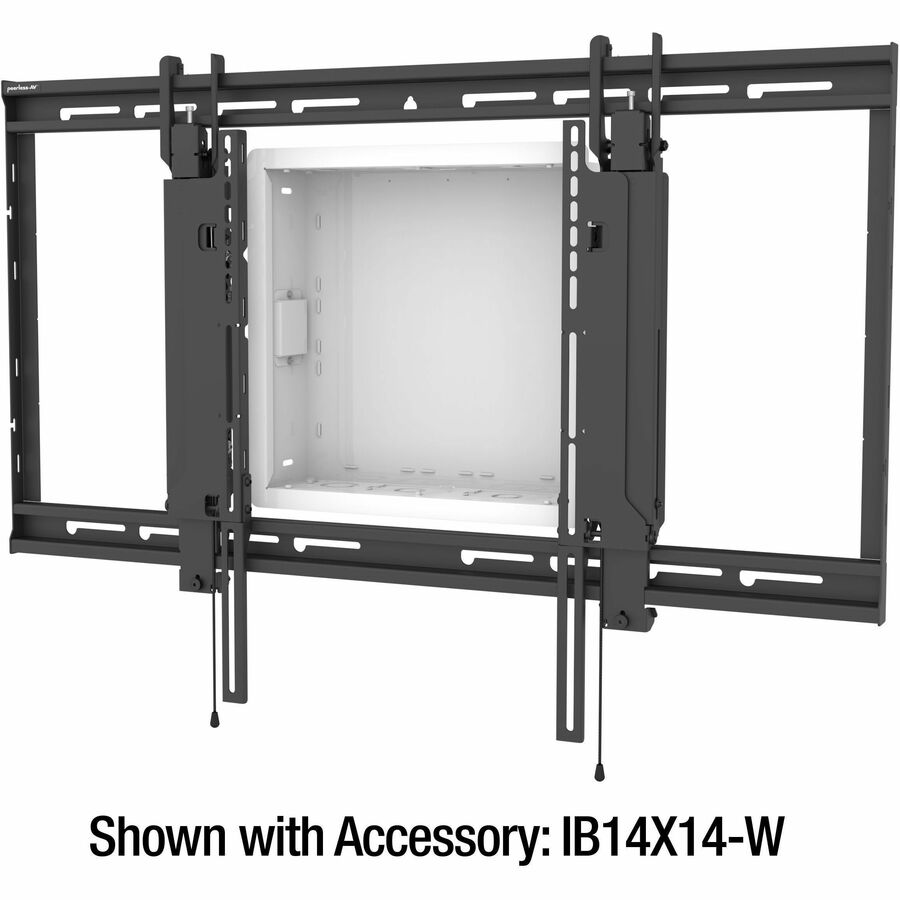

Open access design provides the maximum open area on the wall to allow flexible placement for outlets and/or in-wall boxes
Post-installation leveling and side-to-side adjustability features allow fine-tuning of the mounted display for the perfect display positioning
IncreLok™ tilt technology allows the tilt angle to be locked for the perfect viewing position while preventing tampering or unwanted adjustment

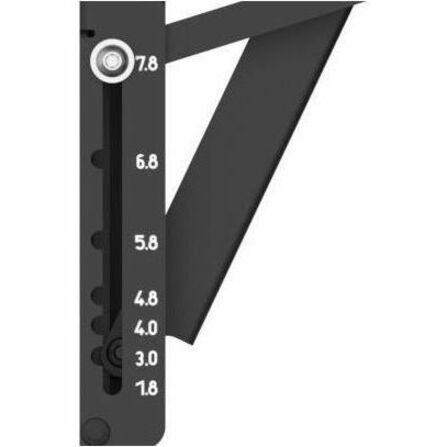

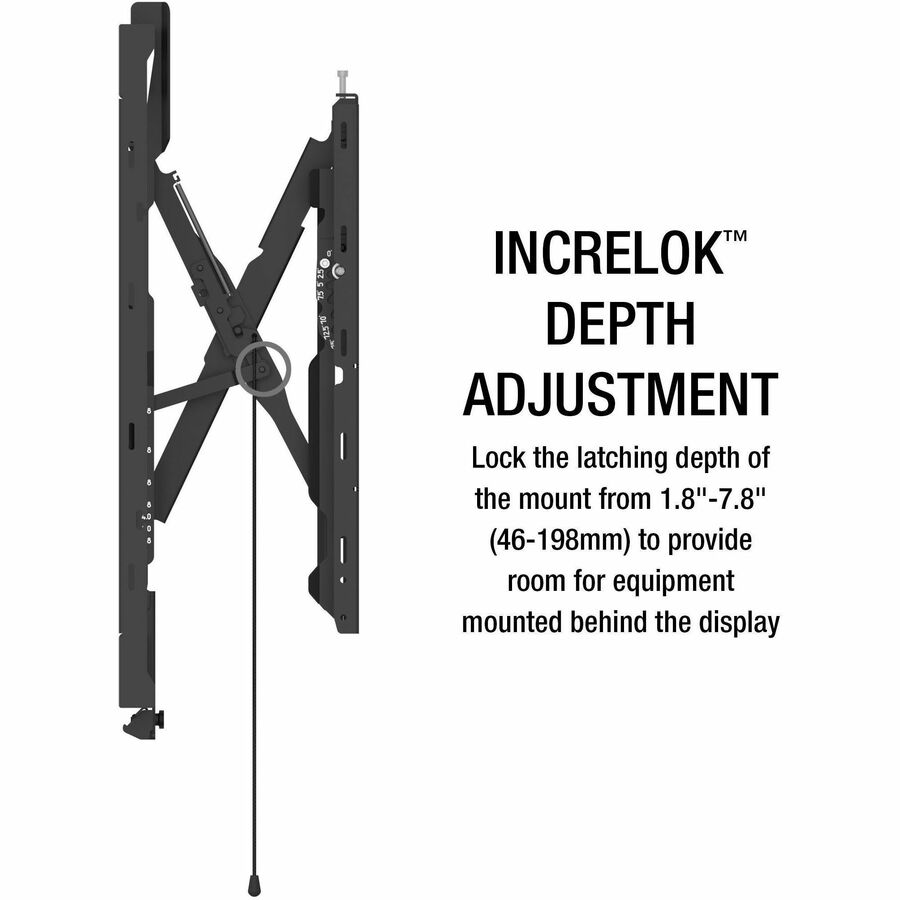

IncreLok™ depth adjustment enables the latching depth of the mount to be locked from 1.8"-7.8" (46-198mm), providing ample space for equipment mounted behind the display
Automatic spring locks with quick release cords simplify the installation and service of the display

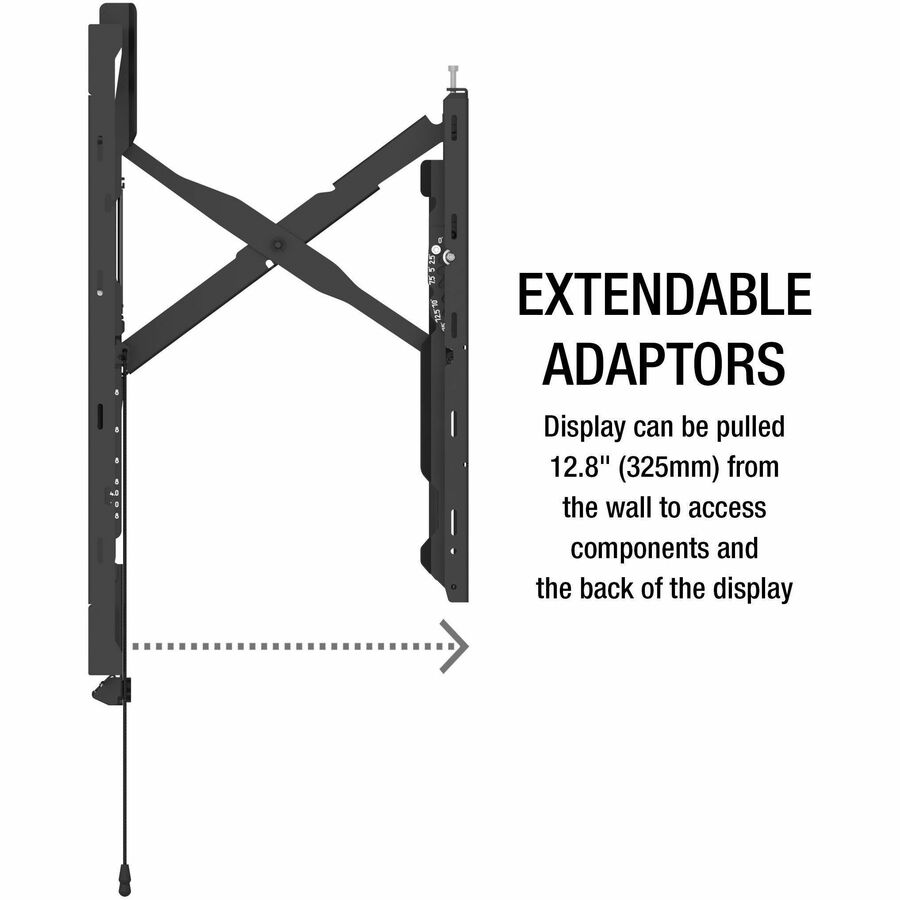

Extendable adaptors allow the display to be pulled up to 12.8" (325 mm) from the wall, providing easy access to components and the back of the display

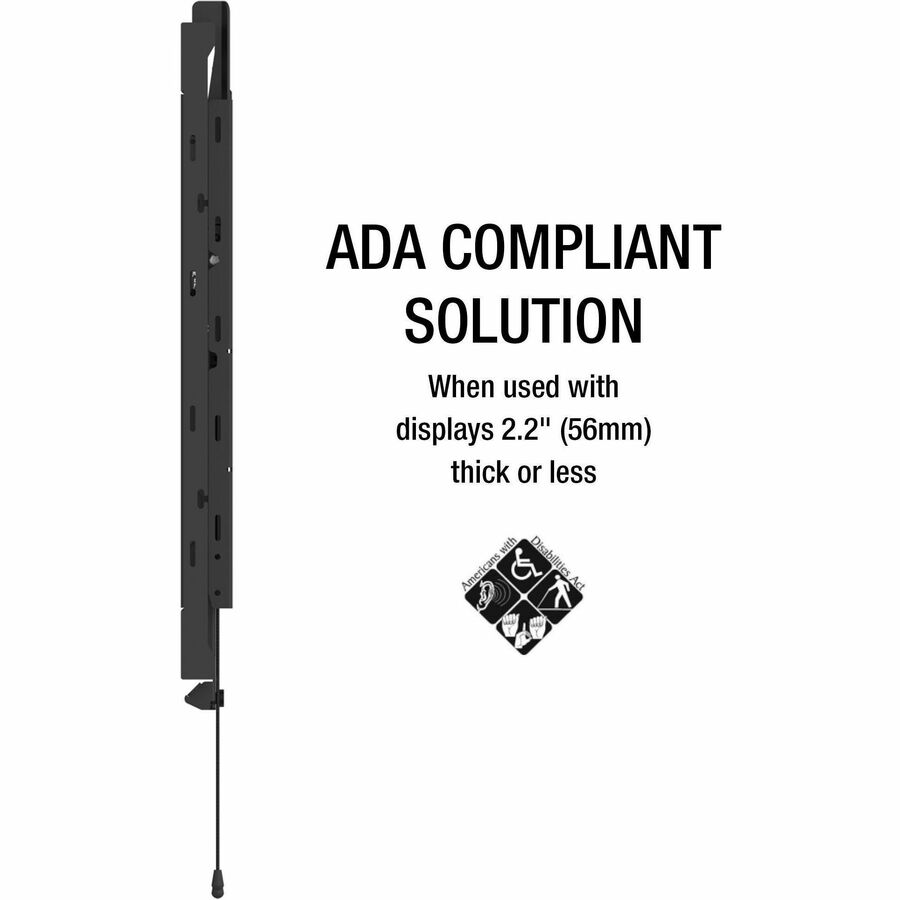

ADA compliant when used with displays 2.2" (56mm) thick or less
1.8"-12.8" (46-325mm) display extension allows for post-installation servicing and component storage behind display
Universal mount fits displays with mounting patterns 200 x 100 to 1000 x 400mm (1000 x 600mm with included bolt-on extenders)

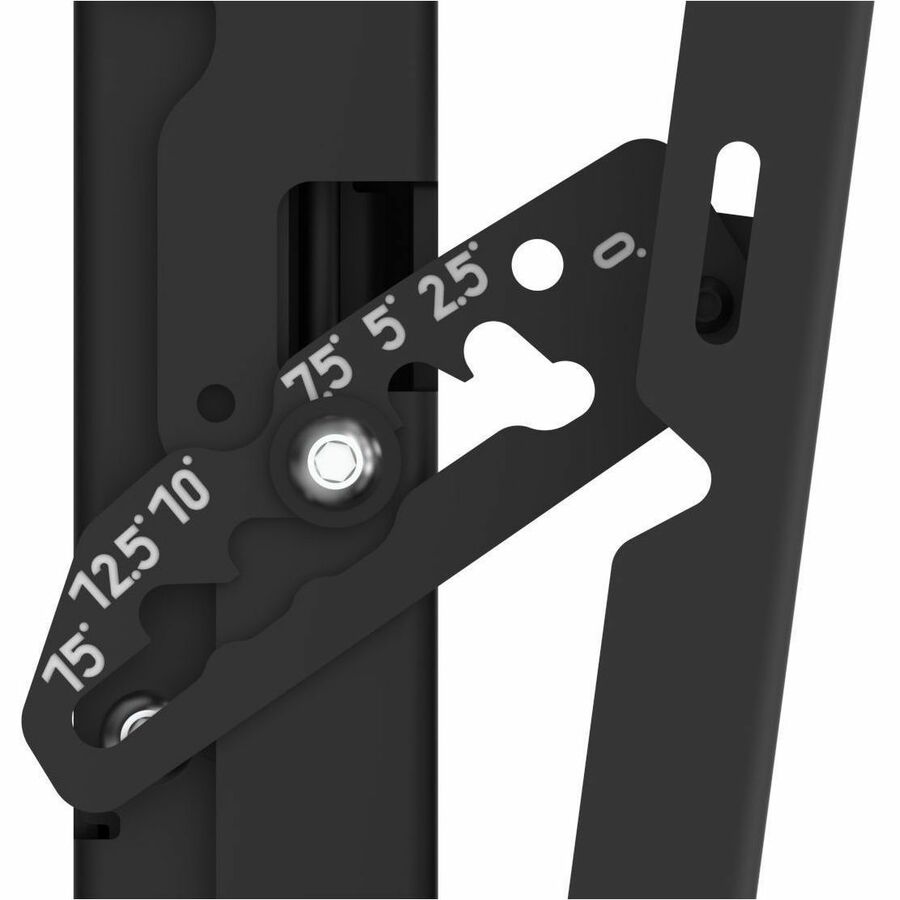

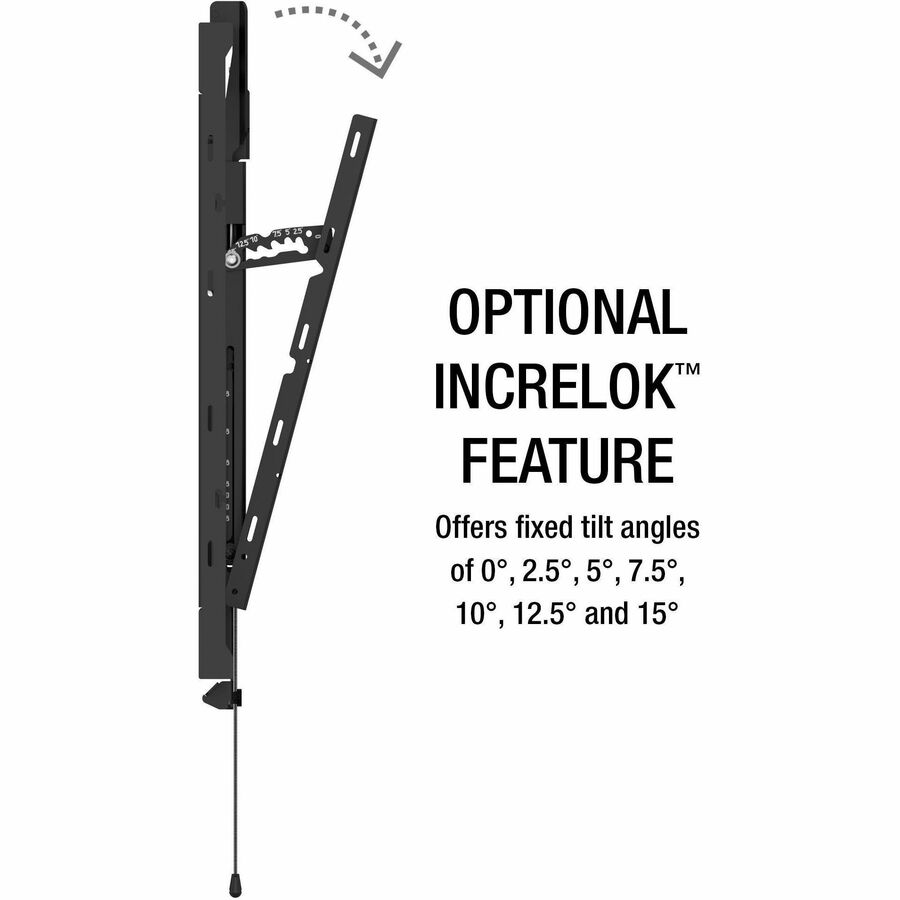

Optional IncreLok™ feature offers fixed tilt angles of 0°, 2.5°, 5°, 7.5°, 10°, 12.5° and 15°
±1/2" (12mm) of post-installation leveling
2° of plumb adjustment to keep displays level on uneven walls

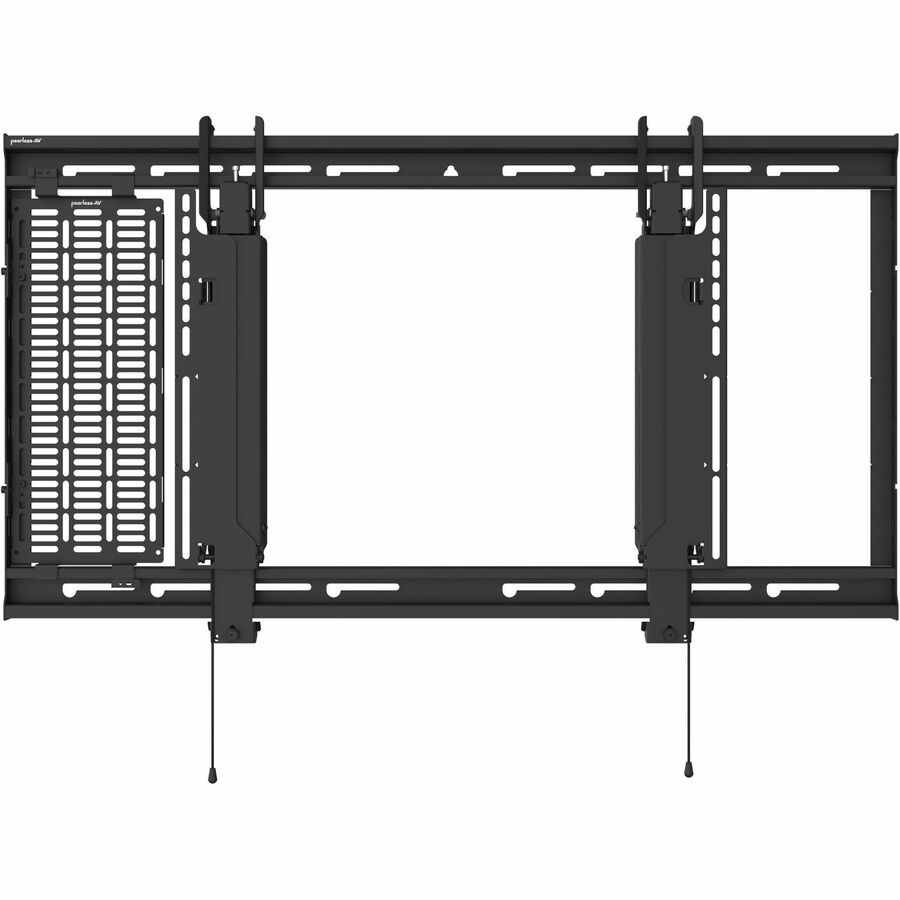

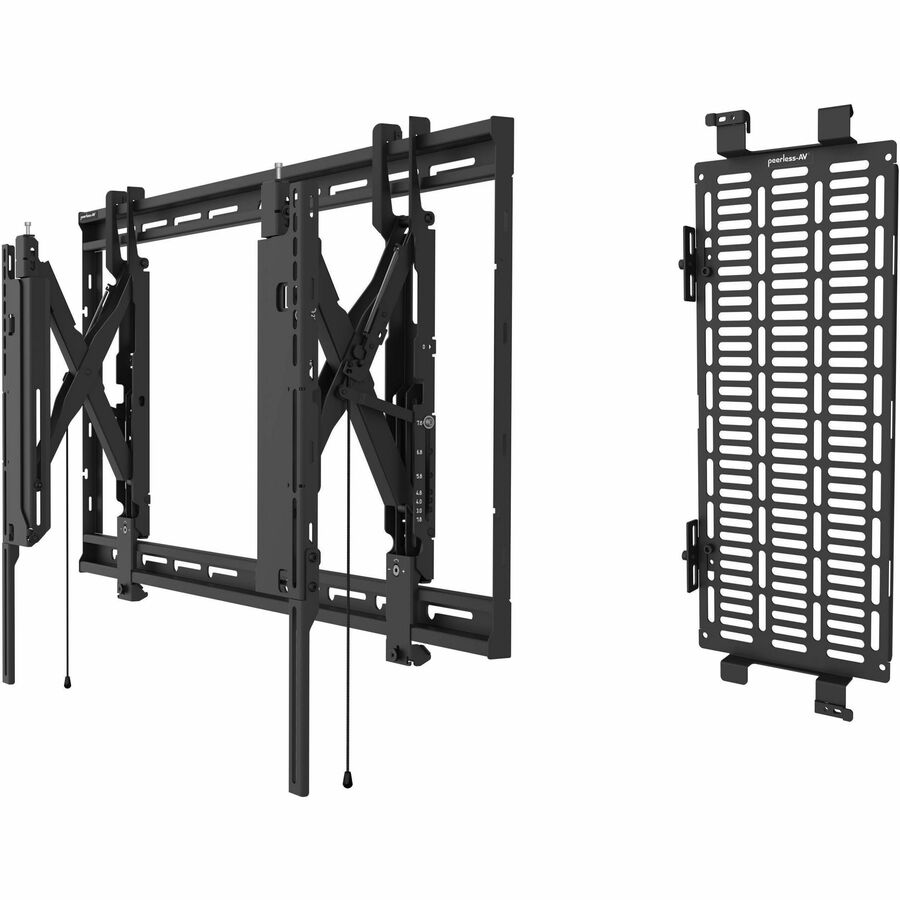

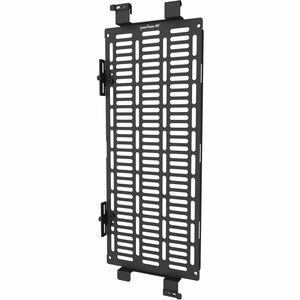

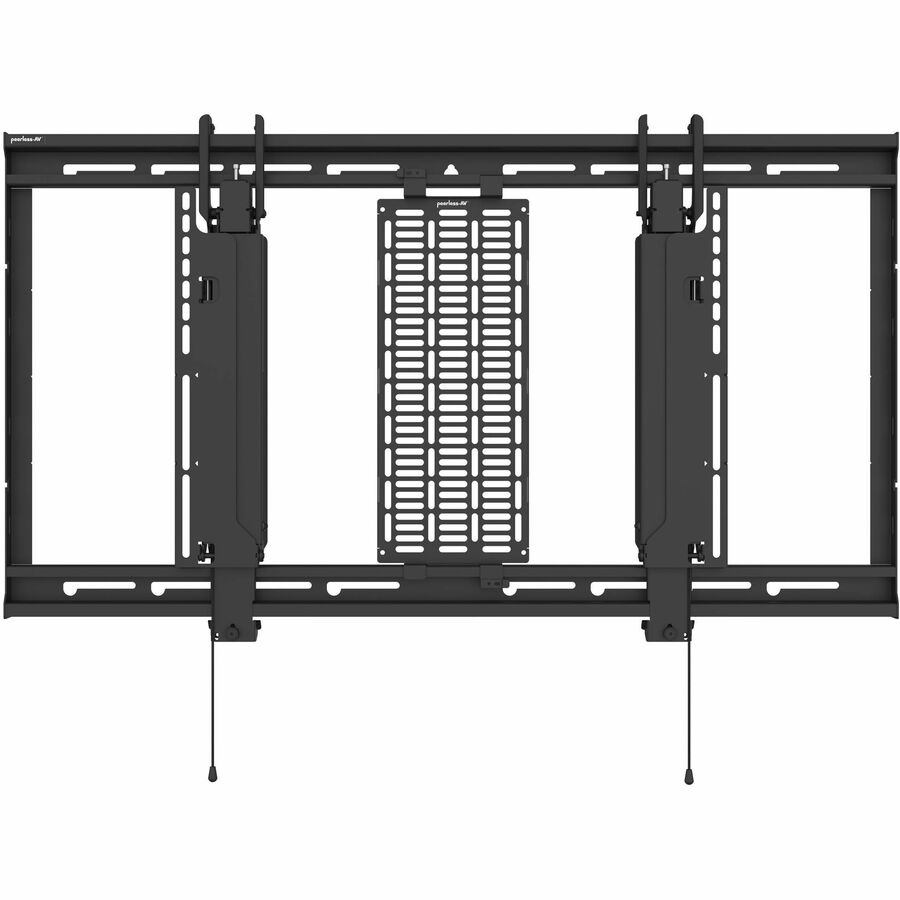

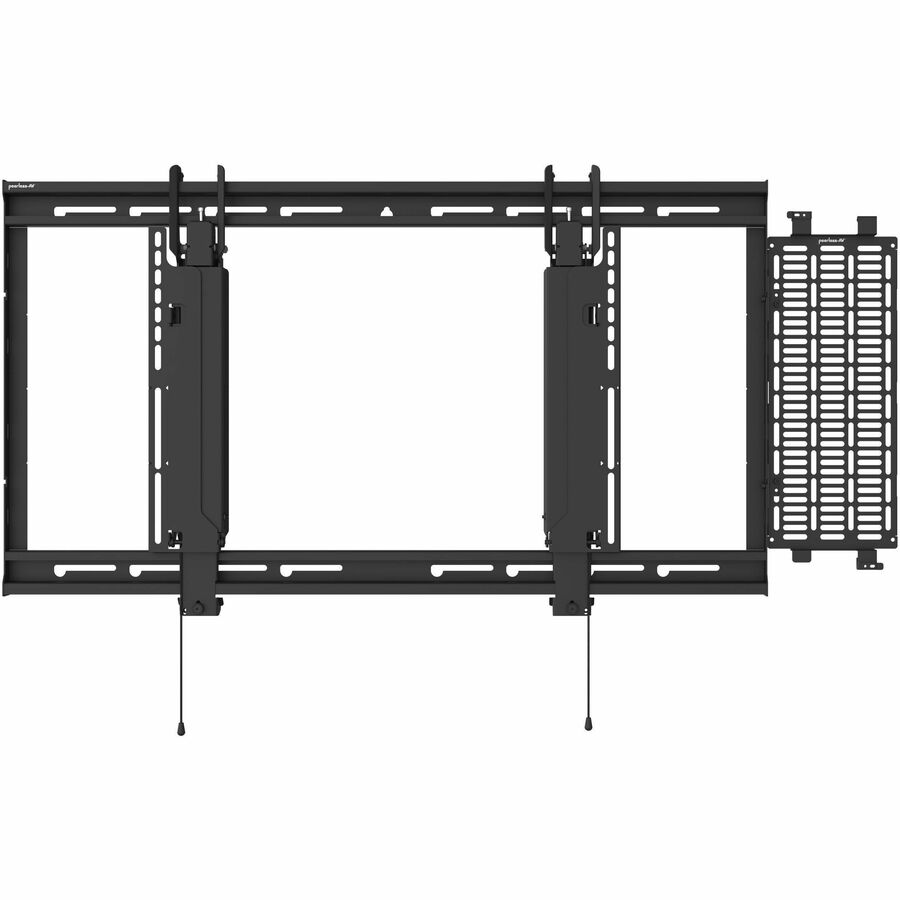

Optional accessory: Universal AV Component Mount (ACC-UCM3) allows components to be installed, configured and cabled off-site, and quickly attaches to the mount, which reduces on-site installation time

Product Specifications

General Information

Manufacturer

Peerless Industries, Inc

Manufacturer Part Number

STS680-1UCM3

Manufacturer Website Address

http://www.peerless-av.com

Brand Name

SmartMount®

Product Model

STS680-1UCM3

Product Name

SmartMount® Universal Ultra-Slim Scissor Wall Mount for 49" to 120"+ Displays

Marketing Information

Peerless-AV's SmartMount® Universal Scissor Wall Mount (STS680-1UCM3) is the ideal solution for UC/VC applications and recessed wall installations. Designed for convenience, it provides easy access to components stored behind the display. The mount's extendable adaptors allow the display to be pulled up to 12.8" (325mm) from the wall and locked securely in place once installation or maintenance is complete. With its Hook-and-Hang™ feature, installation is quick and simple, while the open access design offers maximum wall space flexibility for outlets and in-wall boxes. Post-installation leveling and side-to-side adjustability ensure the display is perfectly aligned in any corporate, digital signage, or hospitality environment. This kitted solution includes (1) STS680 and (1) ACC-UCM3 component mount.

Packaged Quantity

1 Unit

Product Type

Wall Mount

General Information
Manufacturer	Peerless Industries, Inc
Manufacturer Part Number	STS680-1UCM3
Manufacturer Website Address	http://www.peerless-av.com
Brand Name	SmartMount®
Product Model	STS680-1UCM3
Product Name	SmartMount® Universal Ultra-Slim Scissor Wall Mount for 49" to 120"+ Displays
Marketing Information	Peerless-AV's SmartMount® Universal Scissor Wall Mount (STS680-1UCM3) is the ideal solution for UC/VC applications and recessed wall installations. Designed for convenience, it provides easy access to components stored behind the display. The mount's extendable adaptors allow the display to be pulled up to 12.8" (325mm) from the wall and locked securely in place once installation or maintenance is complete. With its Hook-and-Hang™ feature, installation is quick and simple, while the open access design offers maximum wall space flexibility for outlets and in-wall boxes. Post-installation leveling and side-to-side adjustability ensure the display is perfectly aligned in any corporate, digital signage, or hospitality environment. This kitted solution includes (1) STS680 and (1) ACC-UCM3 component mount.
Packaged Quantity	1 Unit
Product Type	Wall Mount

Product Information

Device Supported

Display
Digital Signage Display

Maximum Load Capacity

250 lb

Minimum Screen Size Supported

49"

Maximum Screen Size Supported

120"

Minimum Adjustable Depth

1.80"

Maximum Adjustable Depth

12.80"

Features

Extendable
Lockable
Hook-and-Hang Design
Easy to Install
Flexible
Adjustable
Horizontal Adjustment
Vertical Adjustment
Increlock
Spring Lock
Plumb Adjustment

Mount Pattern

Universal

Minimum Tilt Angle

0°

Maximum Tilt Angle

15°

Mount Function

Wall Mount
Tilt
Extendable

Mount Surface

Wall

Durability

Scratch Resistant
Tamper Resistant

Product Information
Device Supported	Display Digital Signage Display
Maximum Load Capacity	250 lb
Minimum Screen Size Supported	49"
Maximum Screen Size Supported	120"
Minimum Adjustable Depth	1.80"
Maximum Adjustable Depth	12.80"
Features	Extendable Lockable Hook-and-Hang Design Easy to Install Flexible Adjustable Horizontal Adjustment Vertical Adjustment Increlock Spring Lock Plumb Adjustment
Mount Pattern	Universal
Minimum Tilt Angle	0°
Maximum Tilt Angle	15°
Mount Function	Wall Mount Tilt Extendable
Mount Surface	Wall
Durability	Scratch Resistant Tamper Resistant

Physical Characteristics

Color Family

Black

Product Color

Black

Finishing

Fused Epoxy

VESA Mount Compatible

Yes

Mounting Pattern

200 x 100
1000 x 400
1000 x 600
200 x 200
300 x 200
300 x 300
400 x 200
400 x 300
400 x 400
600 x 400
600 x 600
800 x 400
800 x 600
900 x 600

Form Factor

Wall Mountable

Height

28.30"

Width

40.20"

Depth

12.80"

Weight (Approximate)

30.10 lb

Physical Characteristics
Color Family	Black
Product Color	Black
Finishing	Fused Epoxy
VESA Mount Compatible	Yes
Mounting Pattern	200 x 100 1000 x 400 1000 x 600 200 x 200 300 x 200 300 x 300 400 x 200 400 x 300 400 x 400 600 x 400 600 x 600 800 x 400 800 x 600 900 x 600
Form Factor	Wall Mountable
Height	28.30"
Width	40.20"
Depth	12.80"
Weight (Approximate)	30.10 lb

Miscellaneous

Package Contents

Universal Ultra-Slim Scissor Wall Mount
1 x STS680 Wall Mount
1 x ACC-UCM3 Component Mount

Application/Usage

Corporate
Digital Signage
Hospitality
Wall

Assembly Required

Yes

TAA Compliant

Yes

UL Listed

Yes

Environmental Compliance

Restriction of Hazardous Substances (RoHS)

Miscellaneous
Package Contents	Universal Ultra-Slim Scissor Wall Mount 1 x STS680 Wall Mount 1 x ACC-UCM3 Component Mount
Application/Usage	Corporate Digital Signage Hospitality Wall
Assembly Required	Yes
TAA Compliant	Yes
UL Listed	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
